Comet Spray Pump MP 20
CMP20
$1,099.00 + GST
Details
- Semi-hydraulic, twin diaphragm pump for medium-pressure spraying
- Suited for small sprayers in gardens, greenhouses, orchards, and vineyards
- Handles pesticide, herbicide, fertiliser, and suspension product applications
- Self-priming with large-capacity oil bath crankcase
- Compact design for easy integration with multiple drive options
- Compatible with flanged shafts: 1 3/8โ 6 spline, 1โ keyed, or 30 mm keyed
- Parts in contact with liquid are made of corrosion-resistant plastic-coated aluminium

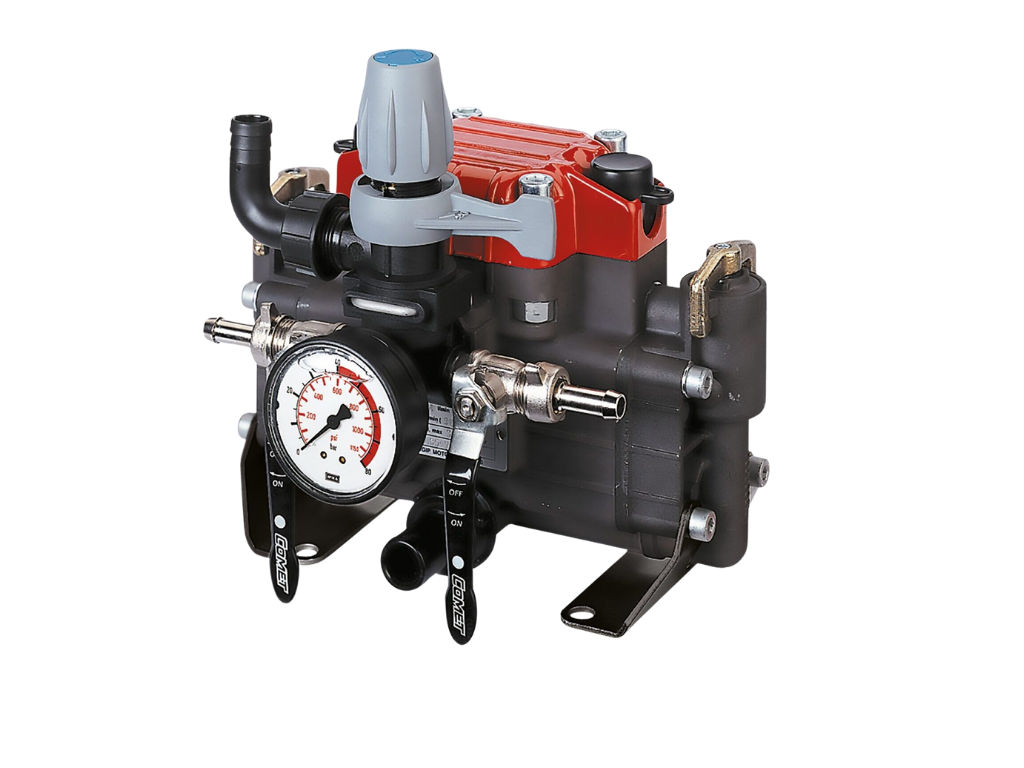

The Comet MP20 is a compact, semi-hydraulic twin diaphragm pump for dependable medium-pressure spraying. With a maximum capacity of 20 L/min at up to 435 PSI, itโs well-suited for handling pesticides, herbicides, fertilisers, and suspension products in gardens, greenhouses, orchards, and vineyards. Featuring two NBR diaphragms and the parts in contact with spray liquid are made of corrosion-resistant plastic-coated aluminium. Its self-priming capability, large oil bath crankcase, and multi-fit flanged shaft compatibility make it a versatile choice for varied mounting configurations.
Please note: this pump does not include a pressure regulator โ Comet 2 Tap Pressure Regulator sold separately.
Specifications
| Pump type | Semi-hydraulic twin diaphragm |
|---|---|
| Max flow | 20 L/min (3.7 GPM) @ 0 bar |
| Max pressure | 435 PSI / 30 bar |
| Max RPM | 550 |
| Required HP | 1.6 HP (1.2 kW) |
| Shaft type | 1โณ 3/8 male |
| Optional shaft types | SP27.16 (1 3/8โ 6 spline), SP27.23 (1โ keyed, 25.4 mm), SP27.17 (30 mm keyed). All available separately, please view related parts below. |
| Suction inlet diameter | ร 23 mm |
| Delivery outlet diameter | ร 16 mm |
| Number of diaphragms | 2 |
| Diaphragm/seal material | NBR (Buna) |
| Oil capacity | 0.5 L (16.9 fl oz) |
| Pump body material | Anodized Aluminium |
| Dimensions (L ร H ร W) | 260 ร 183 ร 159 mm |
| Weight | 6.6 kg |
| Self-priming capability | Yes |
| Can run dry | Yes |
Accessories
Check out our full range ofย spray pump accessoriesย to complete your setup and get the most out of your Comet Spray Pump
Related Parts
- MP20K Comet MP 20 & MP30 Service Kitย
- 1800.20 Comet MC20, P15, P25, MP20, MP40, APS41 & AZ30 Diaphragmย
- 1800.33 Comet P25, BP115, BP135, MC20 & MP20 Air Diaphragm
- 2800.19 Comet Inlet Suction Tail (23mm)ย
- 2802.13 Comet 13mm Pressure Tailย
- 27.16 Comet Pump Drive 1 3/8″ 6splย
- 27.17 Comet Pump Drive 30mmย
- 27.23 Comet Pump Drive 25.4mmย
- 1204.495 Comet 2 Tap Pressure Regulatorย
- 5005.216 Comet Gearbox
- 5002.3 Comet Female PTO Kit
- 5004.6 Comet Remote Kit
