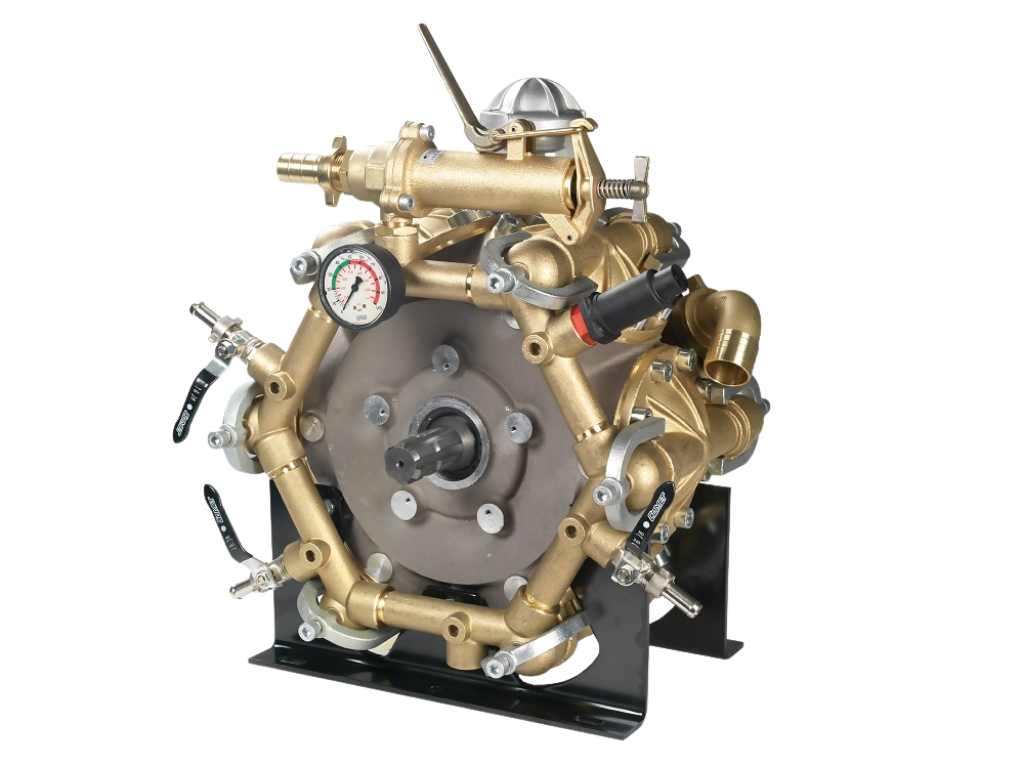

Comet Spray Pump IDS2200
CIDS2200
$10,599.00 + GST
Save $1,575 โ 15% Off (RRP $10,250)
Details
- Semi-hydraulic 6-diaphragm high-pressure pump
- Designed for commercial operators and large-scale sprayers
- Suited to trailing and self-propelled sprayers for orchards, vineyards, and broad-acre crops
- All parts in contact with liquid are made of brass for superior corrosion resistance
- Includes pressure accumulator, 50 bar safety valve, and large-capacity oil bath crankcase
- Features brass heads and manifolds for long service life
- Self-priming and capable of running dry
The Comet Spray Pump IDS2200 is a semi-hydraulic, 6-diaphragm high-pressure pump designed for commercial spraying operations. Delivering up to 216 L/min at 50 bar (725 PSI), itโs ideal for large trailing or self-propelled sprayers used in orchard, vineyard, or broad-acre applications.
All parts in contact with liquid are made of brass, offering maximum corrosion resistance and durability for continuous professional use. The Comet IDS2200 includes a pressure accumulator, 50 bar safety valve, and large oil bath crankcase for smooth performance and long-lasting reliability
Supplied with a 6-spline 1โณ 3/8 thru shaft, the IDS2200 integrates easily with tractor PTOs and other drive systems. This model is built to handle demanding workloads in modern agricultural spraying systems.
Two versions available:
- With adjustment valves and pressure gauge
- Without adjustment valves and without pressure gauge.
Specifications
| Pump type | Semi-hydraulic 6-diaphragm, high-pressure |
|---|---|
| Max flow | 216 L/min |
| Max pressure | 50 bar / 725 PSI |
| Max RPM | 550 |
| Required HP | 26.2 HP (19.3 kW) |
| Shaft type | 1โณ 3/8 male 6 spline on both sides (thru shaft) |
| Suction inlet diameter | 2 ร ร 35 mm |
| Delivery outlet diameter | 3 ร ร 10 mm + 1 ร G 3/4โณ F |
| Number of diaphragms | 6 |
| Diaphragm/seal material | NBR (Buna), Desmopan and Viton available on request |
| Pump body material | All parts in contact with liquid made of brass |
| Oil capacity | 4.3 L (145.4 fl oz) |
| Dimensions (L ร H ร W) | 463 ร 357 ร 270 mm |
| Weight | 76 kg |
| Standard features | Pressure accumulator, safety valve, 1โณ bypass, large oil bath crankcase, mounting rails, includes thru shaft |
| Self-priming capability | Yes |
| Can run dry | Yes |
Accessories
Check out our full range of spray pump accessories to complete your setup and get the most out of your Comet Spray Pump.
Related Parts
Genuine parts for the Comet Spray Pump IDS2200 are available separately:
- Service Kitย
- Valve Assembly
- 2801.71 Comet 40mm Suction Elbow
- Fly Nut
- 2801.35 Comet 40mm Suction Elbow
- Diaphragm
- Piston 70mm Dia
- Oil Reservoirย
- Conrod Bearingย
- 440.26 Crankshaft Bearing
- 438.8 Crankshaft Bearing
- Crankshaft Seal
