Comet Spray Pump BP75
CBP75
Original price was: $1,100.00.$1,000.00Current price is: $1,000.00. + GST
Save $335 — 23% Off (RRP $1,435)
Details
- Triple diaphragm low-pressure pump, delivering up to 71 L/min at 20 bar (290 PSI)
- Suited to 500 – 800 litres spray units fitted with a gorse gun and/or 10 metre spray booms
- Parts in contact with liquid are made of corrosion-resistant plastic-coated aluminium
- Compact design for easy application on small-sized mounted or trailed machines
- External manifolds allow for easy servicing and maintenance
- Versatile applications: boom sprayers, spot spraying, fertiliser injection, and in-furrow fertigation
- For weed control treatments and liquid fertiliser treatment

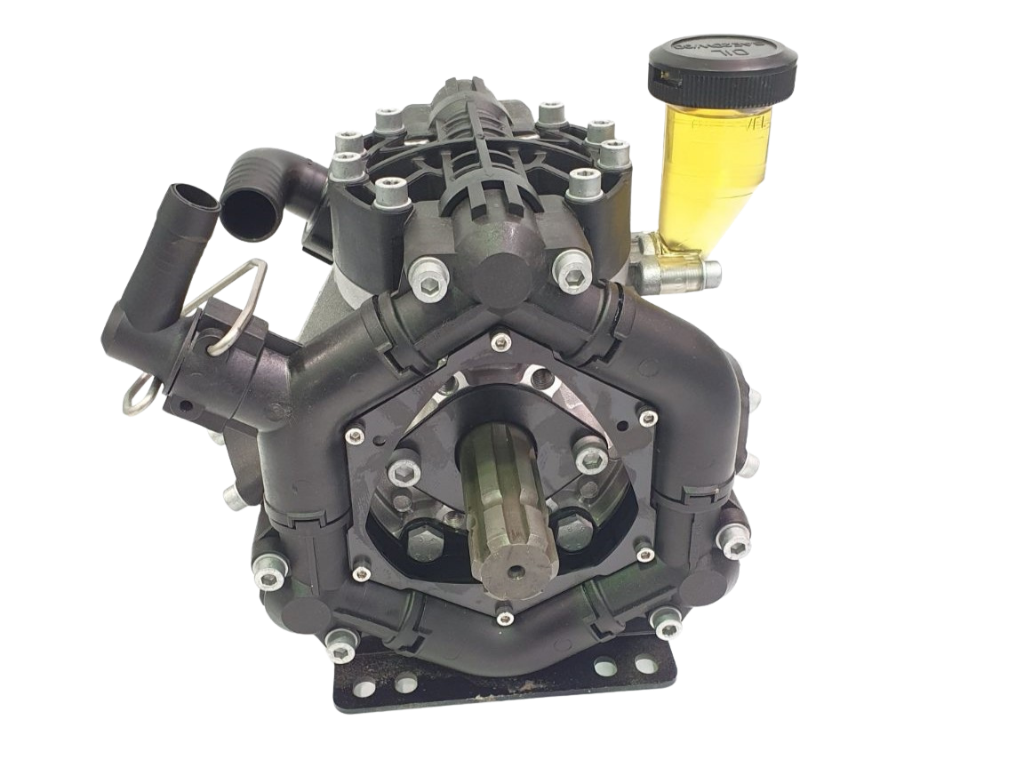

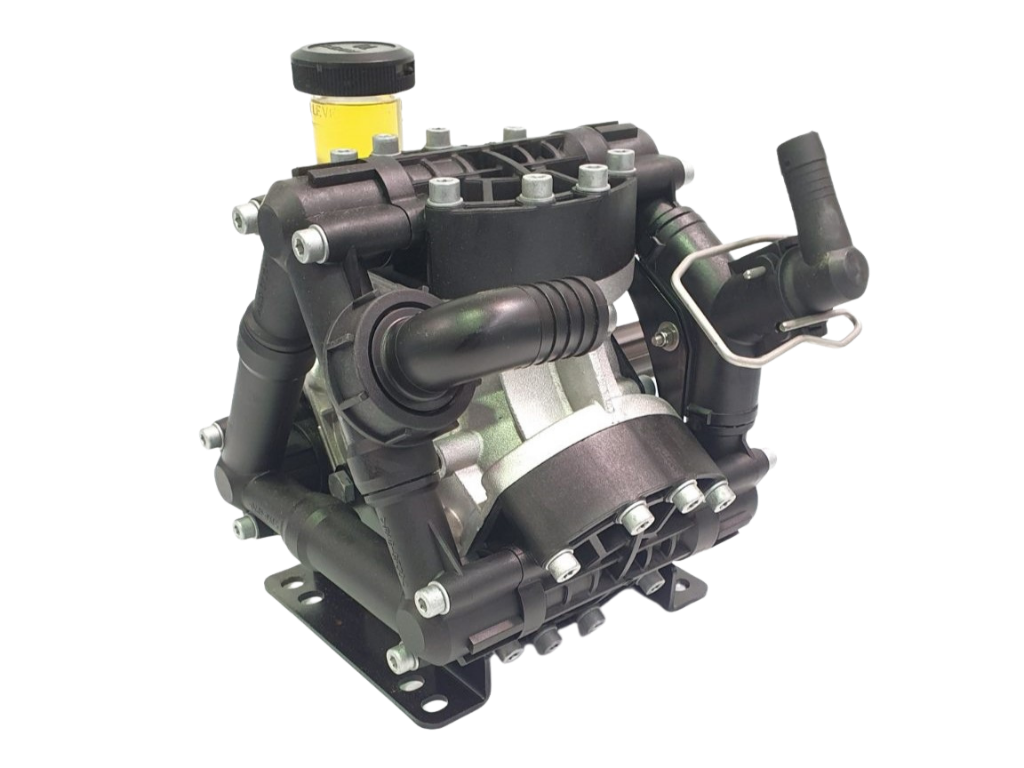

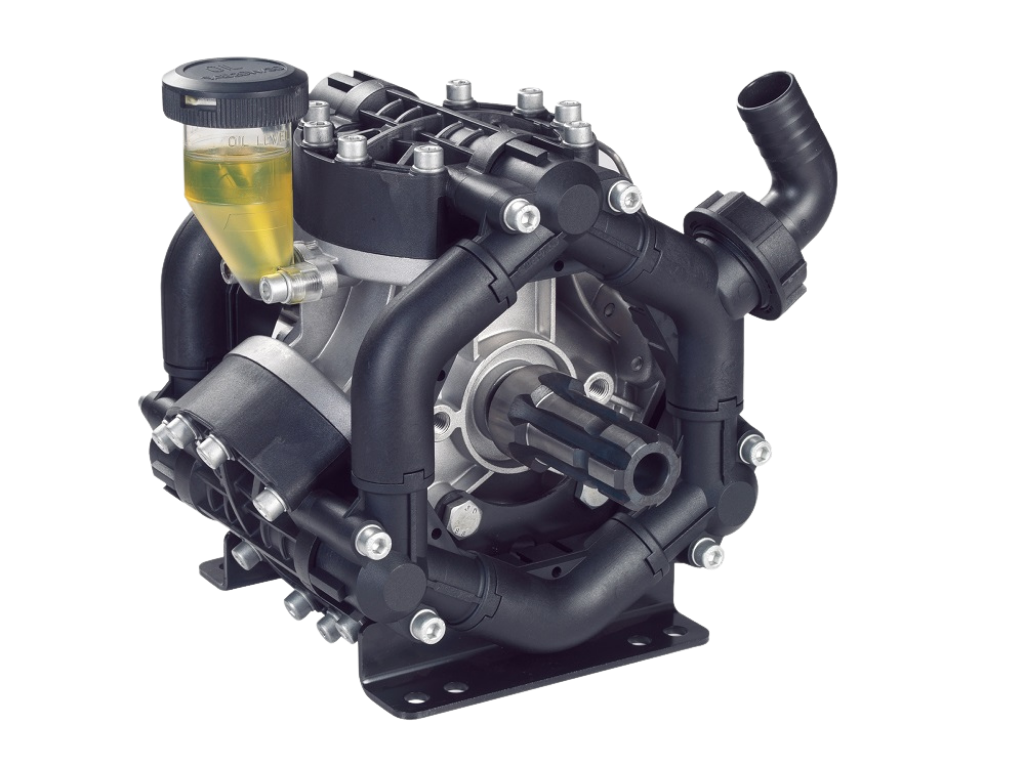

The Comet BP75 Spray Pump is a triple-diaphragm, low-pressure pump built for reliability in agricultural spraying and fertigation. With a maximum output of 71 L/min at 20 bar, it is ideally suited for boom spraying, spot spraying, weed control treatments, liquid fertiliser application, and in-furrow fertigation.
Its compact build makes the BP75 easy to integrate into mounted or trailed sprayers, while external manifolds simplify servicing and maintenance. All Parts in contact with liquid are made in plastic material and resistant to chemical products used in agriculture. Heads and manifolds are made of a plastic material.
Specifications
| Pump type | Triple diaphragm, low-pressure |
|---|---|
| Max flow | 71 L/min |
| Max pressure | 20 bar / 290 PSI |
| Max RPM | 550 |
| Required HP | 3.5 HP / 2.6 kW |
| Shaft types | Ø 30 mm keyed, 1″ 3/8 male 6 spline (other adapters available) |
| Suction inlet diameter | Ø 30 mm |
| Delivery outlet diameter | Ø 20 mm |
| Number of diaphragms | 3 |
| Diaphragm/seal material | NBR & Desmopan |
| Pump body material | Reinforced polyamide (nylon) |
| Oil capacity | 0.5 L (16.9 fl oz) |
| Dimensions (L × H × W) | 276.5 × 271 × 278 mm |
| Weight | 10 kg |
| Standard features | External manifolds for easy maintenance, compact build |
Accessories
Check out our full range of spray pump accessories to complete your setup and get the most out of your Comet Spray Pump.
Related Parts
Genuine parts for the Comet Spray Pump BP75 are available separately:
- Service Kit
- Suction Elbow 32mm
- Cap Nut
- Pressure Tail
- Pressure Elbow (19mm)
- Valves
- Sight Glass
- Diaphragm
