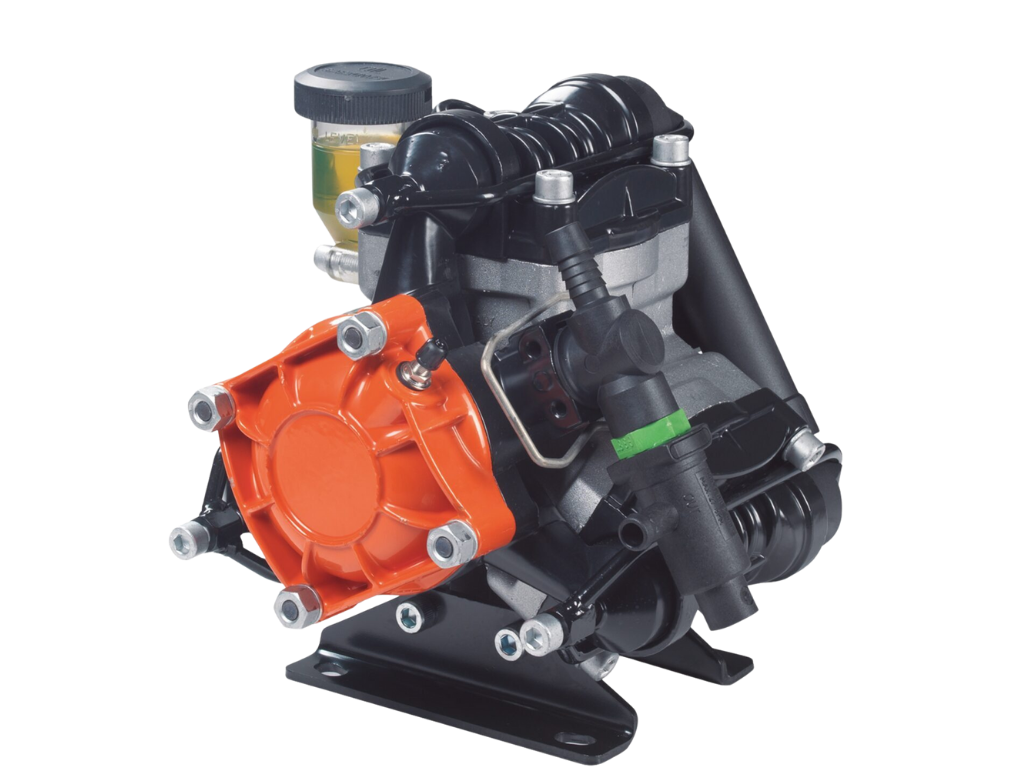

Comet Spray Pump BP125K – 30mm Shaft

CBP125.30

$1,519.20 + GST

Save $379.80 — 20% Off (RRP $1,899)

Details

  • Semi-hydraulic 3-diaphragm low-pressure pump delivering up to 121 L/min
  • Suited to medium–large spray units across agriculture and horticulture
  • Parts in contact with liquid are made in plastic material and plastic-coated aluminium resistant to chemical products used in agriculture
  • Includes pressure accumulator for smoother operation
  • Features a 30 mm keyed shaft for direct engine or gearbox drive

The Comet Spray Pump BP125K with 30 mm keyed shaft is a semi-hydraulic, 3-diaphragm low-pressure pump designed for medium to large agricultural spraying applications. Delivering up to 121 L/min at 20 bar (290 PSI), it is well-suited to sprayers used in vineyards, orchards, and broadacre farming.

Parts in contact with liquid are made in plastic material and plastic-coated aluminium, providing resistance to agricultural chemicals and long-term durability. The BP125K includes a pressure accumulator and features a large oil bath crankcase to ensure smooth operation and reduced servicing.

The 30 mm keyed shaft configuration allows direct drive from engines, hydraulic systems, or gearboxes. With self-priming capability and the ability to run dry, the Comet BP125K is a reliable and versatile choice for a wide range of spraying setups.

Specifications

Pump type Triple diaphragm, low-pressure
Max flow 121 L/min
Max pressure 20 bar / 290 PSI
Max RPM 550
Required HP 6.5 HP
Shaft type 30 mm keyed shaft
Suction inlet diameter Ø 40 mm
Delivery outlet diameter Ø 20 mm + G 3/4″ F
Number of diaphragms 3
Diaphragm/seal material NBR (Buna)
Pump body material Plastic material and plastic-coated aluminium
Oil capacity 0.6 L
Dimensions (L × H × W) 256 × 273 × 278 mm
Weight 13 kg
Standard features Pressure accumulator, large oil bath crankcase
Self-priming capability Yes
Can run dry Yes

Accessories

Check out our full range of spray pump accessories to complete your setup and get the most out of your Comet Spray Pump.



Related Parts

Genuine parts for the Comet Spray Pump BP171K are available separately:

Also available: Comet Spray Pump BP125K – 6 Spline

Shipping

Flat rate shipping New Zealand-wide — includes rural and residential addresses.
See our Shipping Page for more details.
$15.00 +GST    |  Up to 5kg
$50.00 +GST    |  5 – 23kg
$120.00 +GST |  23 – 120kg

Stock No: CBP125.30
