Comet Spray Pump APS96
CAPS96
$1,839.20 + GST
Save $459.80 โ 20% Off (RRP $2,299)
Details
- Semi-hydraulic 4-diaphragm high-pressure pump
- Suited to spray units with 1000โ1500 litre tanks
- Ideal for vineyard and berry sprayers
- Parts in contact with liquids made of anodized aluminium for maximum resistance to corrosion
- Includes pressure accumulator, safety valve, and internal manifolds for reliable performance
- Includes thru shaft, compatible with a variety of flanged shafts and drive kits
- Large oil bath crankcase for extended service life
- Handles a wide range of agricultural chemicals including herbicides, pesticides, and liquid fertilisers
- Self-priming with ability to run dry
- Robust Comet design built for heavy-duty agricultural spraying

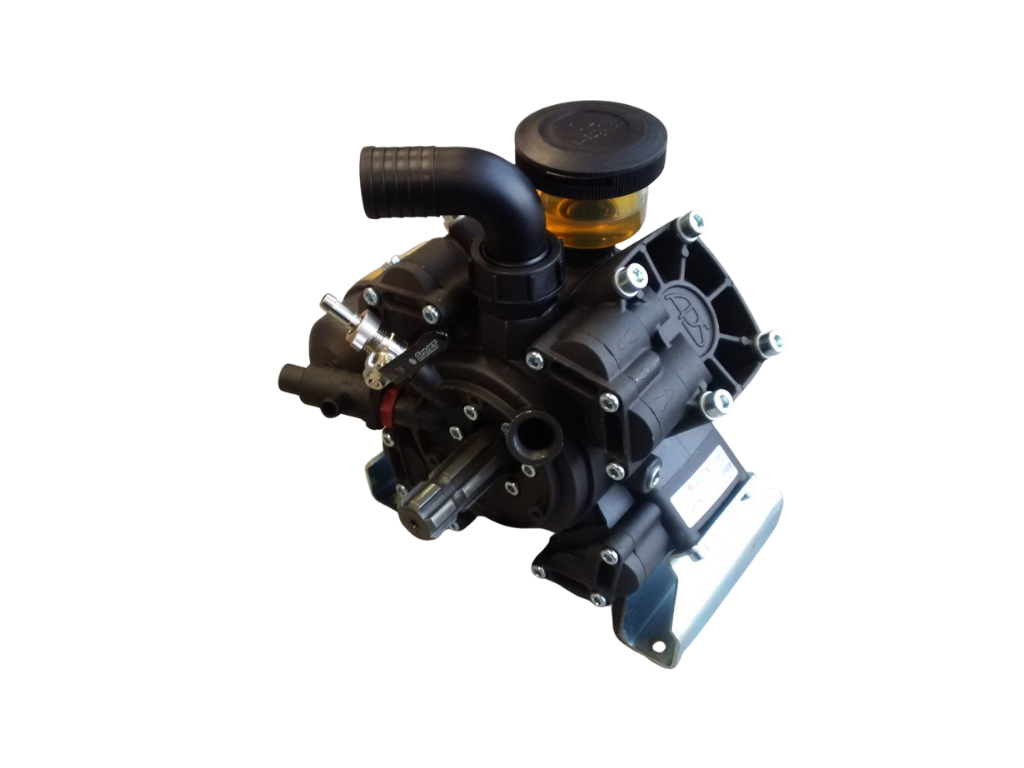

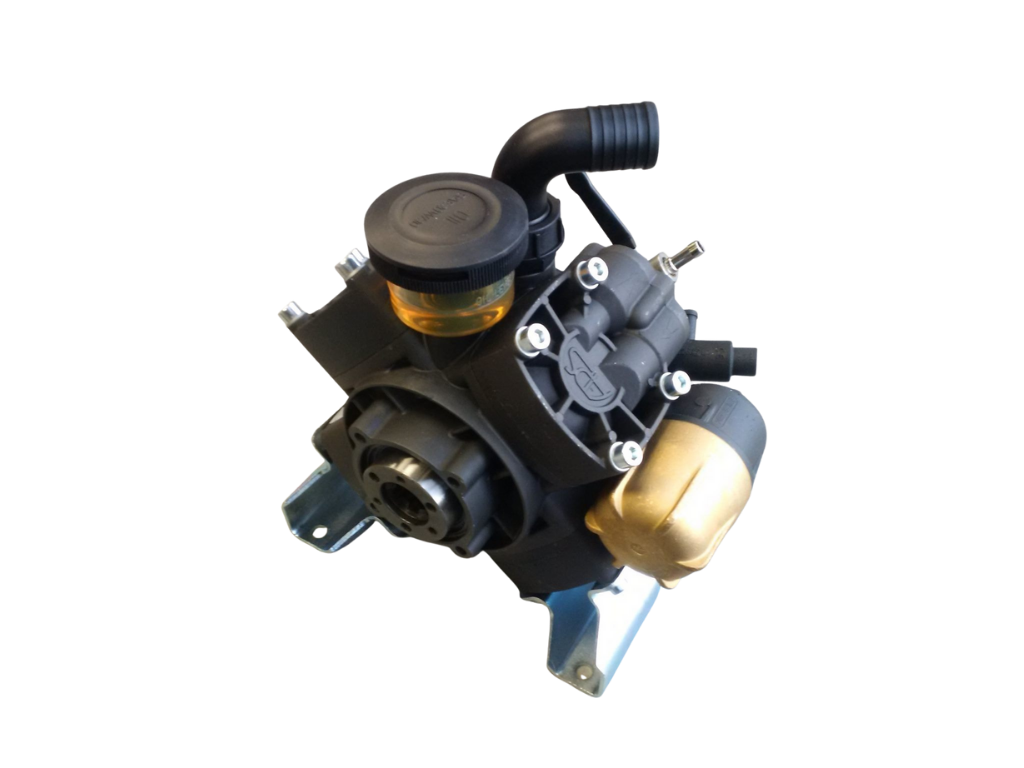

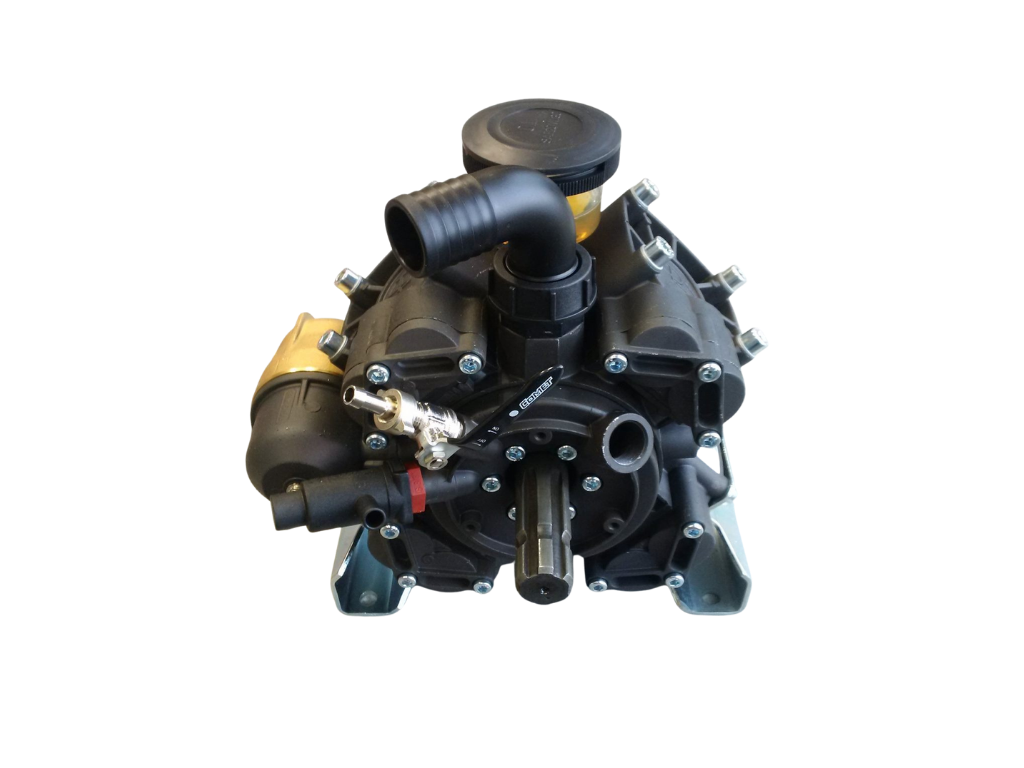

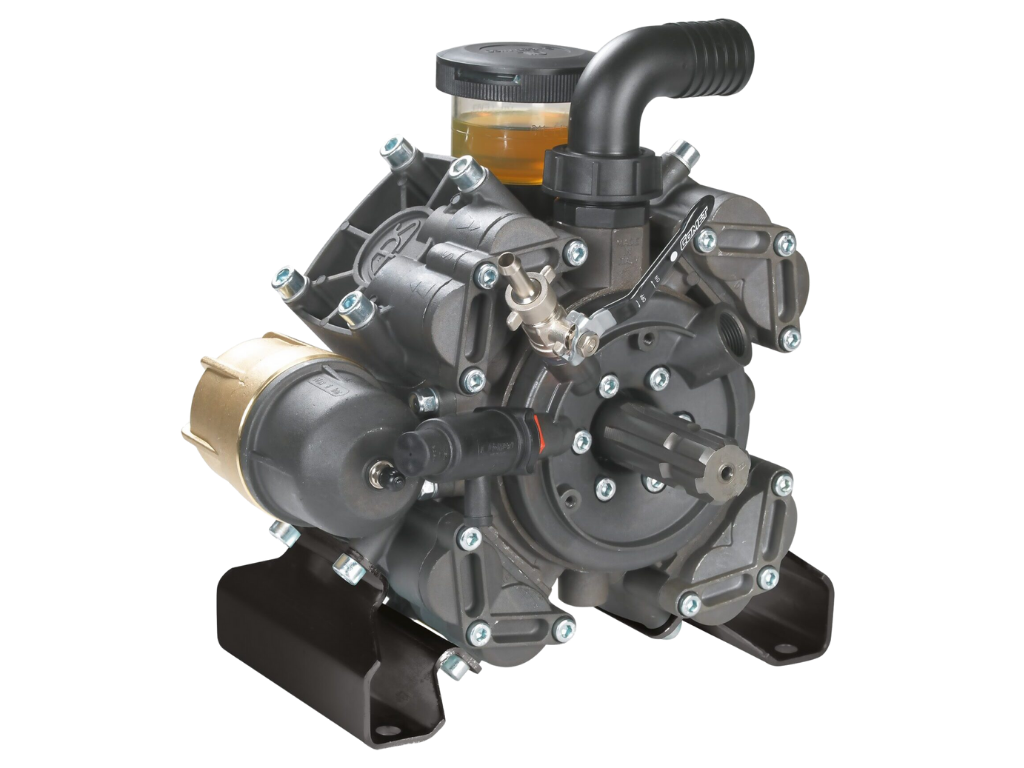

The Comet Spray Pump APS96 is a semi-hydraulic, 4-diaphragm high-pressure pump built for vineyard and berry sprayers. Delivering up to 94 L/min at 50 bar (725 PSI), it is ideally suited for spray units with 1000โ1500 litre tanks.
Parts in contact with liquids are made of anodized aluminium for maximum resistance to corrosion, providing durability. Standard features include a pressure accumulator, safety valve, and internal manifolds, while the large oil bath crankcase ensures durability and reduced maintenance.
Supplied with a thru shaft, the Comet APS96 includes compatibility with a variety of flanged shafts and drive kits, offering flexible installation across PTO, gearbox, and hydraulic configurations. With self-priming capability and the ability to run dry, this spray pump is a dependable solution for vineyard and orchard spraying applications.
Specifications
| Pump type | Semi-hydraulic 4-diaphragm, high-pressure |
|---|---|
| Max flow | 94 L/min |
| Max pressure | 50 bar / 725 PSI |
| Max RPM | 550 |
| Required HP | 11.7 HP (8.6 kW) |
| Shaft type | 1โณ 3/8 male 6 spline, thru shaft (other adapters available) |
| Suction inlet diameter | ร 40 mm |
| Delivery outlet diameter | G 3/4โณ F, ร 10 mm |
| Number of diaphragms | 4 |
| Diaphragm/seal material | NBR (Buna) |
| Pump body material | Anodized aluminium |
| Oil capacity | 1.3 L (43.9 fl oz) |
| Dimensions (L ร H ร W) | 345 ร 340 ร 236 mm |
| Weight | 23 kg |
| Standard features | Pressure accumulator, safety valve, internal manifolds |
| Self-priming capability | Yes |
| Can run dry | Yes |
Accessories
Check out our full range ofย spray pump accessoriesย to complete your setup and get the most out of your Comet Spray Pump.
Related Parts
- Service Kit
- Valve
- Diaphragm
- Air Diaphragm
- Suction Elbow
- Sight Glass
- Cap Nutย
- Female PTO Kit
- 3 Tap Pressure Regulatorย
- Remote Kitย
