Comet Spray Pump APS71
$1,759.20 + GST
Save $439.80 โ 20% Off (RRP $2,199)
Details
- Semi-hydraulic, 3-diaphragm high-pressure pump for agricultural spraying
- Suited to 400โ600 litre sprayers fitted with gorse gun and/or 12m boom
- Delivers up to 71.3 L/min at 50 Bar for high-output spraying
- Pressure accumulator and safety valve included as standard
- Internal manifolds for a compact and efficient design
- Self-priming with large-capacity oil bath crankcase
- Compatible with herbicides, pesticides, and other agricultural chemicals
- Mounting rails with standard pattern for easy installation
- Parts in contact with liquid are made of corrosion-resistant plastic-coated aluminium

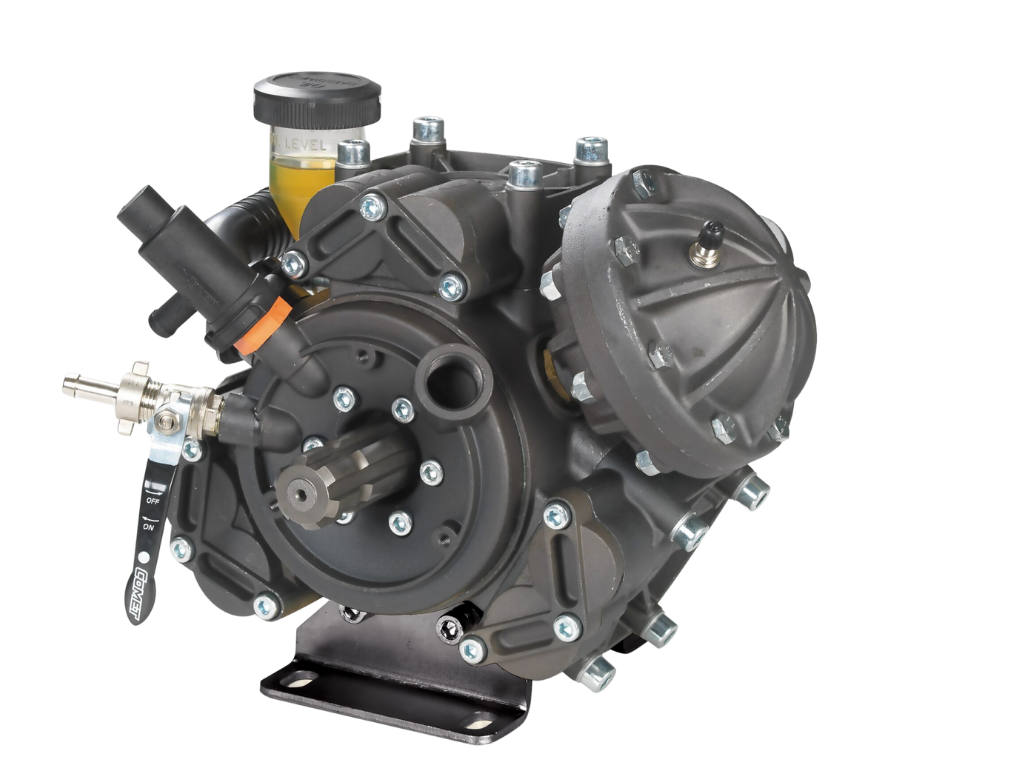

The Comet APS71 is a semi-hydraulic, 3-diaphragm high-pressure pump designed for agricultural spraying applications. Delivering up to 71.3 L/min at 725 PSI (50 Bar), it is ideal for 400โ600 litre sprayers equipped with a gorse gun or 12 m boom. Standard features include a pressure accumulator, safety valve, and internal manifolds, and parts in contact with spray liquid are made of anodized aluminium for maximum resistance to corrosion. With self-priming capability, a large oil bath crankcase, and compatibility with a range of agricultural chemicals, the APS71 can be easily connected to shafts, fan assemblies, pulleys, and gearboxes.
Specifications
| Pump type | Semi-hydraulic 3-diaphragm |
|---|---|
| Max flow | 71.3 L/min |
| Max pressure | 725 PSI / 50 bar |
| Max RPM | 550 |
| Required HP | 9.1 HP |
| Shaft type | 1โณ 3/8 male |
| Suction inlet diameter | ร 35 mm |
| Delivery outlet diameter | 1 ร ร 10 mm, 1 ร G 3/4โณ F |
| Number of diaphragms | 3 |
| Diaphragm/seal material | NBR (Buna) |
| Oil capacity | 1.2 L (40.6 fl oz) |
| Pump body material | Anodized aluminium |
| Pressure accumulator | Yes |
| Safety valve | Yes |
| Internal manifolds | Yes |
| Dimensions (L ร H ร W) | 343 ร 289 ร 238 mm |
| Weight | 19 kg |
| Suitable sprayer size | 400โ600 litres |
| Self-priming capability | Yes |
| Can run dry | Yes |
Accessories
Check out our full range ofย spray pump accessoriesย to complete your setup and get the most out of your Comet Spray Pump.
Related Parts
Genuine parts for the Comet Spray Pump APS71 are available separately:
- APS71K Comet APS71 Service Kit
- 1220.35 Comet APS71 & APS96 Valve
- 1800.34 Comet AP70, APS71, BP60, BP125, BP151, BP171, IDS1200, IDS1400, IDS1501, IDS1701, IDS2001, AZ90, AZ120 & APS145 Air Diaphragm
- 1800.88 Comet APS71 & APS96 Diaphragm
