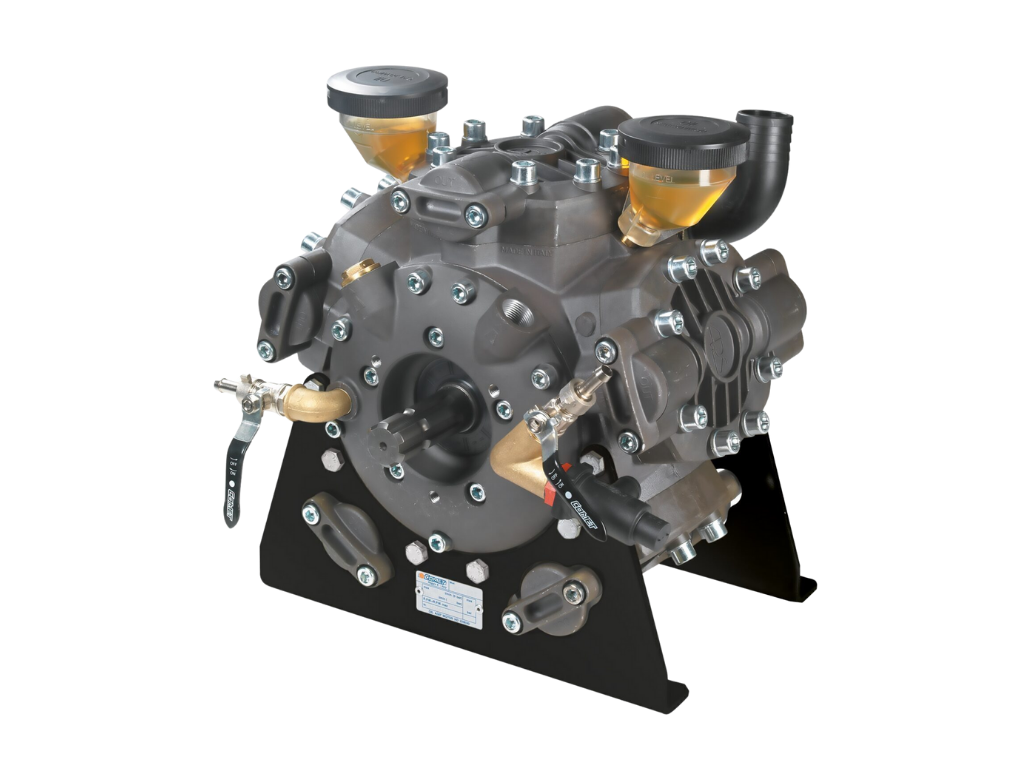

Comet Spray Pump APS166
CAPS166
$3,836.00 + GST
Save $1,163 โ 23% Off (RRP $4,999)
Details
- Semi-hydraulic 5-diaphragm high-pressure pump
- Suited to spray units with 2000โ3000 litre tanks
- Ideal for vineyard and berry sprayers
- Parts in contact with liquids made of anodized aluminium for resistance to corrosion
- Includes pressure accumulator, safety valve, and internal manifolds for reliable performance
- Includes thru shaft; connects easily to tractor PTOs (1โณ 3/8 six-spline) and a range of drive options
- Large oil bath crankcase for long service life and reduced maintenance
- Self-priming and capable of running dry
- Robust Comet build for demanding, continuous spraying
The Comet Spray Pump APS166 is a semi-hydraulic, five-diaphragm high-pressure pump designed for large vineyard and berry sprayers. Delivering up to 169 L/min at 50 bar, itโs well suited to spray units with 2000โ3000 litre tanks and high-demand applications.
Parts in contact with liquids are made of anodized aluminium for maximum resistance to corrosion. Standard features include a pressure accumulator, safety valve, and internal manifolds, while a large oil bath crankcase enhances durability and reduces servicing. The APS166 includes a thru shaft and integrates easily with tractor PTOs (1โณ 3/8 six-spline) and other drive configurations. With self-priming capability and the ability to run dry, itโs a dependable choice for heavy-duty agricultural spraying.
Specifications
| Pump type | Semi-hydraulic 5-diaphragm, high-pressure |
|---|---|
| Max flow | 169 L/min (44.6 GPM) |
| Max pressure | 50 bar / 725 PSI |
| Max RPM | 550 |
| Required HP | 20.5 HP (15.1 kW) |
| Shaft type | 1โณ 3/8 male 6 spline on both sides (thru shaft) |
| Suction inlet diameter | ร 45 mm |
| Delivery outlet diameter | 2 ร ร 10 mm + 1 ร G 3/4โณ F |
| Number of diaphragms | 5 |
| Diaphragm/seal material | NBR (Buna) |
| Pump body material | Parts in contact with liquids made of anodized aluminium |
| Oil capacity | 3.0 L (101.4 fl oz) |
| Dimensions (L ร H ร W) | 389 ร 420 ร 370 mm |
| Weight | 58 kg |
| Standard features | Pressure accumulator, safety valve, internal manifolds, large oil bath crankcase, mounting rails with standard pattern, includes thru shaft |
| Self-priming capability | Yes |
| Can run dry | Yes |
Accessories
Check out our full range ofย spray pump accessoriesย to complete your setup and get the most out of your Comet Spray Pump.
Related Parts
Genuine parts for the Comet Spray Pump APS166 are available separately:
Shipping
Flat rate shipping New Zealand-wide โ includes rural and residential addresses. See ourย Shipping Pageย for more details.
$15.00 +GSTย ย |ย Up to 5kg
$50.00 +GSTย ย |ย 5 โ 23kg
$120.00 +GST |ย 23 โ 120kg
