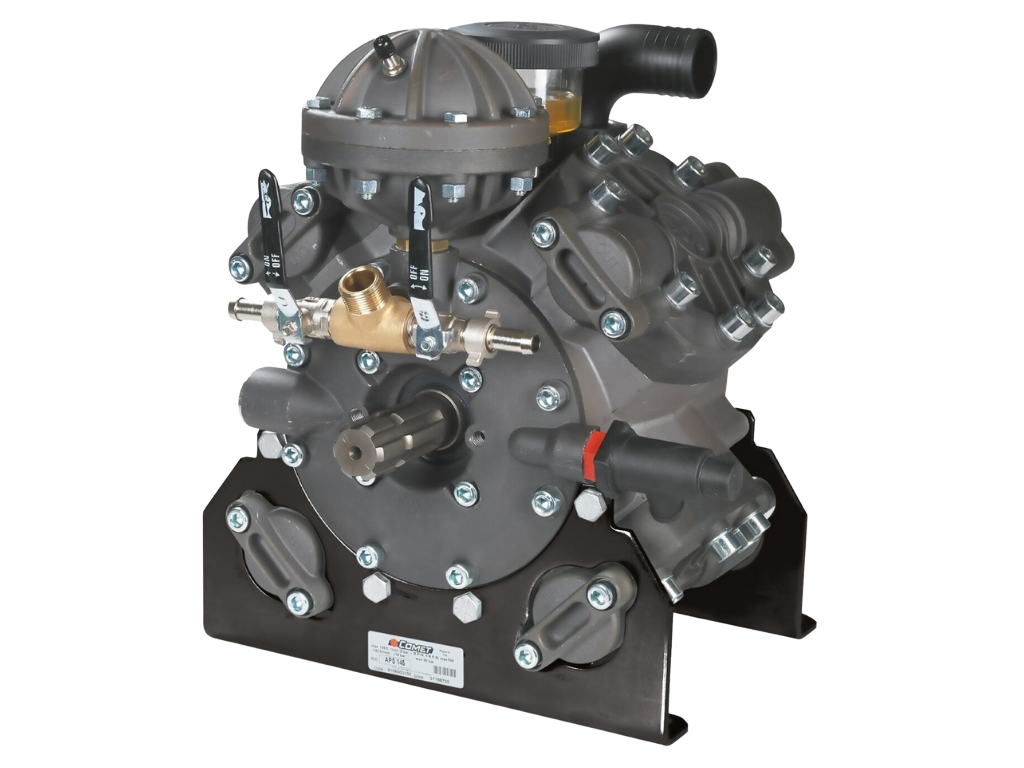

Comet Spray Pump APS145
CAPS145
$2,899.00 + GST
Save $1,100 โ 28% Off (RRP $3,999)
Details
- Semi-hydraulic 4-diaphragm high-pressure pump
- Suited to spray units with 1500โ2000 litre tanks
- Ideal for vineyard and berry sprayers
- Parts in contact with liquids made of anodized aluminium for maximum resistance to corrosion
- Includes pressure accumulator, safety valve, and internal manifolds for reliable performance
- Equipped with a thru shaft; easily connects to PTOs (1โณ 3/8 six-spline) and other drive options
- Large oil bath crankcase for durability and long service life
- Self-priming and capable of running dry
- Heavy-duty Comet build for large-scale spraying applications
The Comet Spray Pump APS145 is a semi-hydraulic, 4-diaphragm high-pressure pump designed for vineyard and berry sprayers. Delivering up to 149 L/min at 50 bar, it is ideally suited to spray units with 1500โ2000 litre tanks.
Parts in contact with liquids are made of anodized aluminium for maximum resistance to corrosion. Standard features include a pressure accumulator, safety valve, and internal manifolds, while the large oil bath crankcase reduces servicing needs and enhances reliability.
Supplied with a thru shaft, the APS145 connects easily to tractor PTOs and alternative drive options. With its self-priming design and dry-run capability, it is a robust, high-capacity solution for heavy-duty agricultural spraying.
Specifications
| Pump type | Semi-hydraulic 4-diaphragm, high-pressure |
|---|---|
| Max flow | 149 L/min |
| Max pressure | 50 bar / 725 PSI |
| Max RPM | 550 |
| Required HP | 18 HP (13.2 kW) |
| Shaft type | 1โณ 3/8 male 6 spline, thru shaft (other options available) |
| Suction inlet diameter | ร 45 mm |
| Delivery outlet diameter | 2 ร ร 10 mm + 1 ร G 3/4โณ M |
| Number of diaphragms | 4 |
| Diaphragm/seal material | NBR (Buna) |
| Pump body material | Parts in contact with liquids made of anodized aluminium |
| Oil capacity | 2.3 L (77.8 fl oz) |
| Dimensions (L ร H ร W) | 380 ร 420 ร 342 mm |
| Weight | 51 kg |
| Standard features | Pressure accumulator, safety valve, internal manifolds, large oil bath crankcase |
| Self-priming capability | Yes |
| Can run dry | Yes |
