Comet Spray Pump APS121
CAPS121
$2,300.00 + GST
Save $950 — 29% Off (RRP $3,250)
Details
- Semi-hydraulic 3-diaphragm high-pressure pump
- Suited to spray units with 1000–1500 litre tanks
- Ideal for vineyard and berry sprayers
- Parts in contact with liquids made of anodized aluminium for maximum resistance to corrosion
- Includes pressure accumulator, safety valve, and internal manifolds for reliable performance
- Includes thru shaft; easily connects to PTOs and various drive options
- Large oil bath crankcase for extended durability and low maintenance
- Self-priming and capable of running dry
- Built for robust, continuous agricultural spraying applications

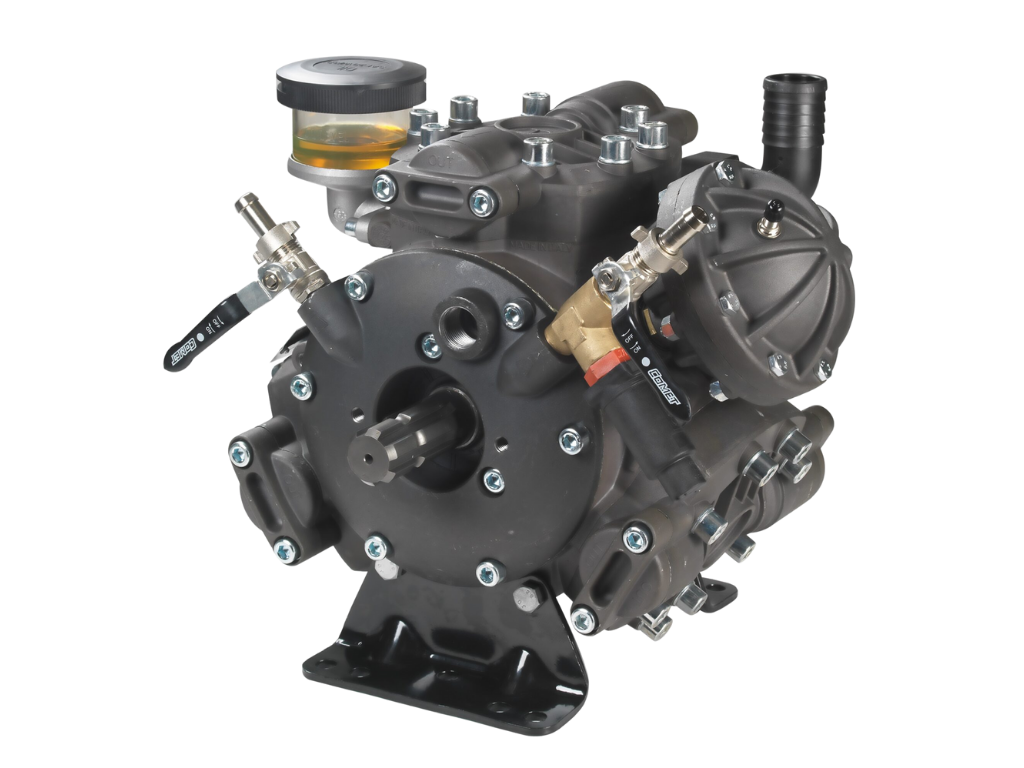

The Comet Spray Pump APS121 is a semi-hydraulic, 3-diaphragm high-pressure pump designed for medium-sized agricultural sprayers. Delivering up to 120 L/min at 50 bar, it’s suited for 1000–1500 litre spray units used in vineyards and berry crops.
Parts in contact with liquids are made of anodized aluminium for maximum resistance to corrosion. Standard features include a pressure accumulator, safety valve, and internal manifolds, while the large oil bath crankcase provides durability and smooth operation.
The Comet APS121 includes a thru shaft for direct PTO connection and compatibility with a variety of drive options. With self-priming capability and the ability to run dry, it’s a reliable choice for spraying and crop protection.
Specifications
| Pump type | Semi-hydraulic 3-diaphragm, high-pressure |
|---|---|
| Max flow | 120 L/min |
| Max pressure | 50 bar / 725 PSI |
| Max RPM | 550 |
| Required HP | 14.5 HP (10.8 kW) |
| Shaft type | 1″ 3/8 male 6 spline, includes thru shaft |
| Suction inlet diameter | Ø 40 mm |
| Delivery outlet diameter | 2 × Ø 10 mm + 1 × G 3/4″ F |
| Number of diaphragms | 3 |
| Diaphragm/seal material | NBR (Buna) |
| Pump body material | Parts in contact with liquids made of anodized aluminium |
| Oil capacity | 1.8 L (60.9 fl oz) |
| Dimensions (L × H × W) | 387 × 356 × 329 mm |
| Weight | 38 kg |
| Standard features | Pressure accumulator, safety valve, internal manifolds, large oil bath crankcase |
| Self-priming capability | Yes |
| Can run dry | Yes |
Accessories
Check out our full range of spray pump accessories to complete your setup and get the most out of your Comet Spray Pump.
Related Parts
Genuine parts for the Comet Spray Pump APS121 are available separately:
Shipping:
Flat rate shipping New Zealand-wide — includes rural and residential addresses.
See our Shipping Page for more details.
$15.00 +GST | Up to 5kg
$50.00 +GST | 5 – 23kg
$120.00 +GST | 23 – 120kg
Stock No: CAPS121
