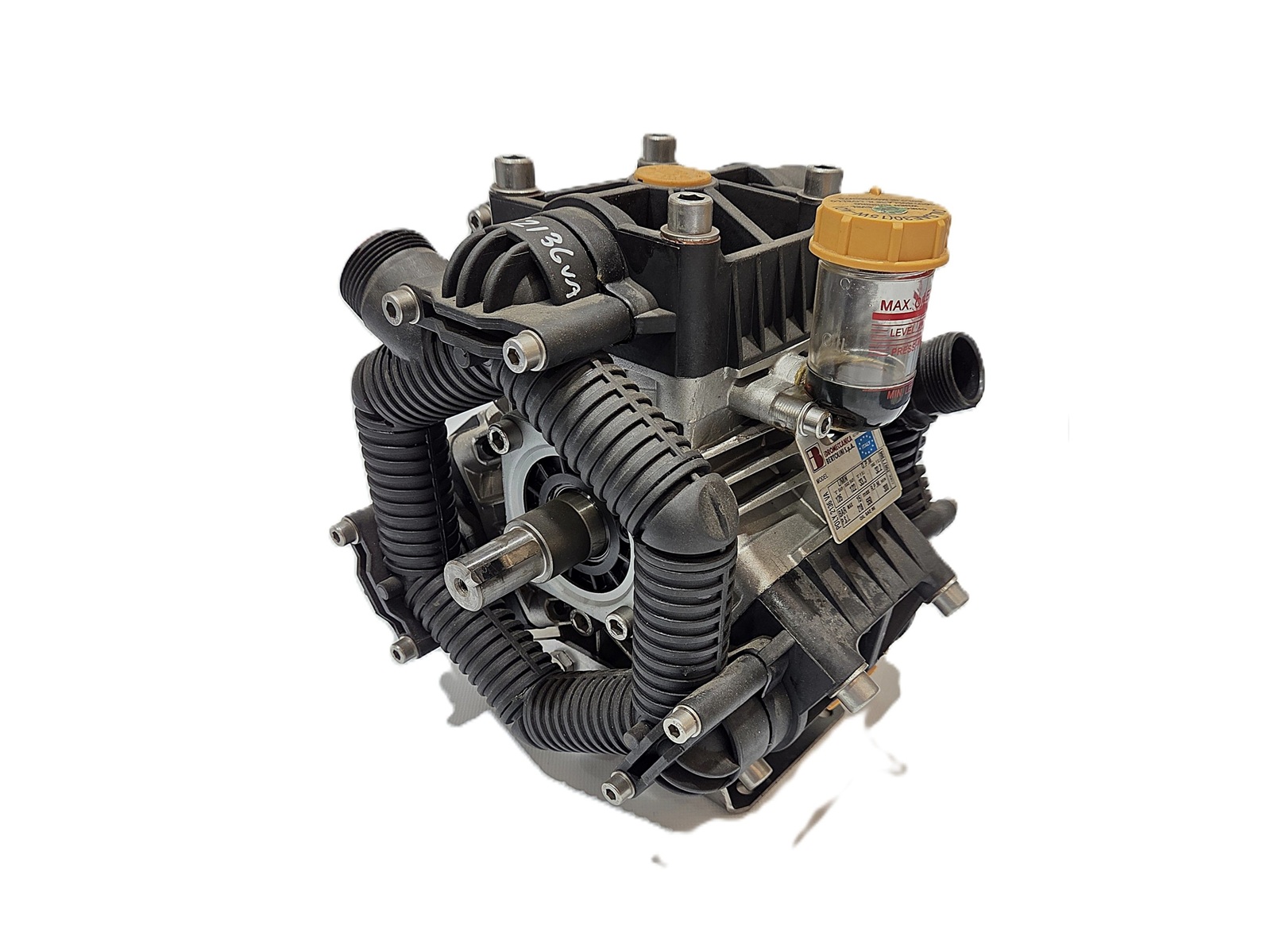

Bertolini POLY2136 Spray Pump c/w 1″ Keyed Shaft
POLY2136VA
$1,679.20 + GST
Save $419.80 – 20% off (RRP $2,099)
Suitable for motorised spray units fitted with a 1000 litre spray tank, with a gorse gun and/or 12 – 15 metre spray boom.
- Max Flow: 126 L/Min
- Max Pressure: 218 PSI/ 15 Bar
- Shaft: 1″ keyed
- Max RPM: 550
- Required HP: 5.0
- 3 Diaphragms configuration in NBR
- Intake Elbow: 40mm
- Outlet Elbow: 25mm
- Weight: 19kg
The Bertolini POLY 2136 is a low-pressure three-diaphragm spray pump delivering up to 71 L/min at 15 bar / 218 psi. Designed for agricultural spraying applications, it is suited to motorised spray units running 1000 litre tanks, including setups fitted with a gorse gun and/or 12 -15-metre spray booms. The three-diaphragm design provides smoother flow and reduces hammer effect in the delivery circuit.
The POLY 2136 is driven via a 1โณ keyed shaft at up to 550 RPM, requiring 3 HP. It features an oil-immersed mechanism with a clear plastic sight glass for easy oil level monitoring. Parts in contact with liquid are made in plastic material and aluminium items are plastic coated to provide protection from chemical products used in agriculture.
Parts in contact with liquid are made in plastic material and aluminium items are plastic coated to provide protection from chemical products used in agriculture.
Related Spray Pumps
The Bertolini POLY 2136 is also available with a 1โณ 3/8 6 spline shaft
