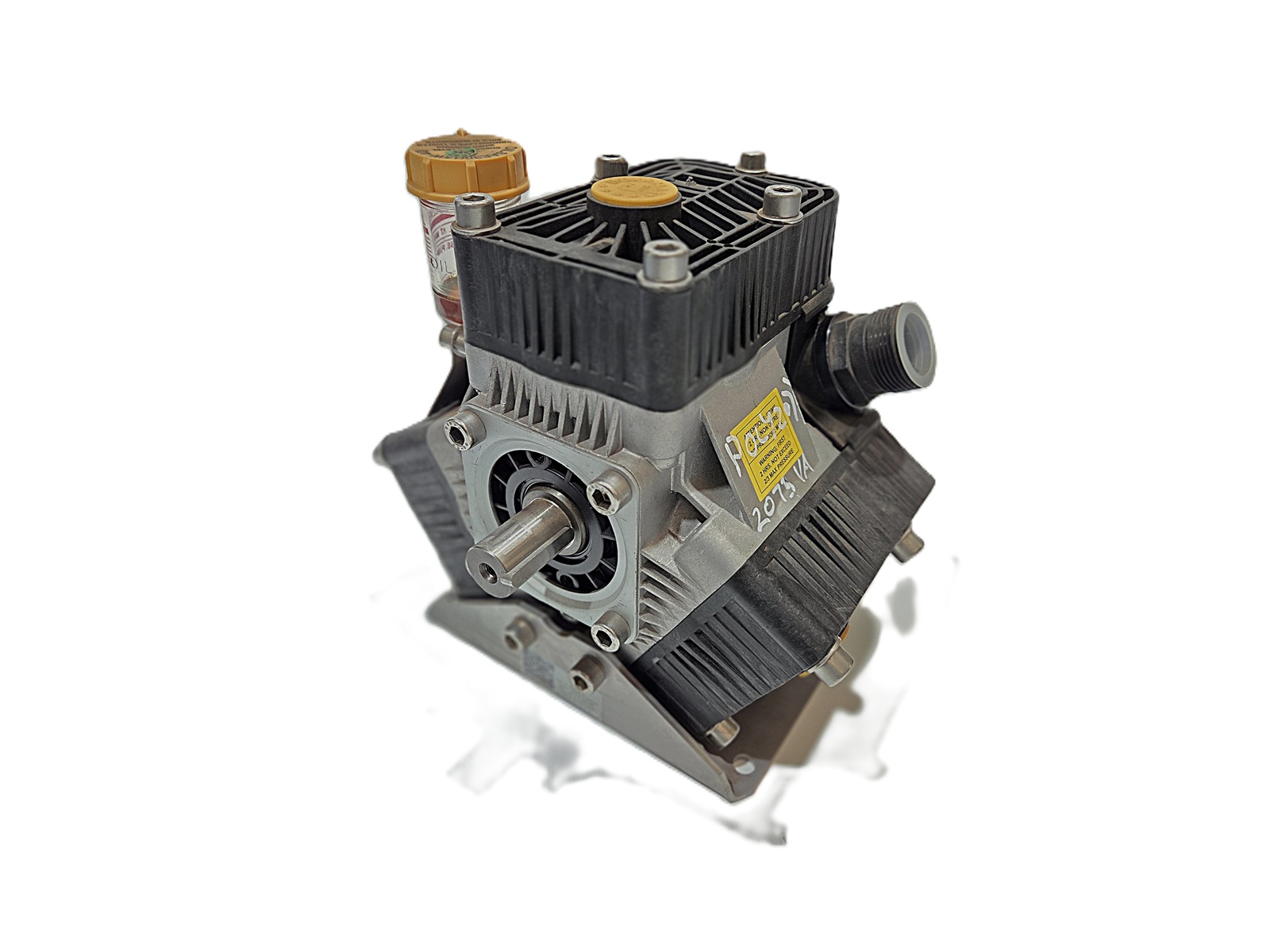

Bertolini POLY2073 Spray Pump c/w 1″ Keyed Shaft

Save $299.80 — 20% Off (RRP $1,499.00)

• Suited to motorised spray units with 600–800 L tanks, gorse guns, and/or 10-metre spray booms
• Max flow 71 L/min, max pressure 15 bar / 218 psi
• Three-diaphragm configuration
• Parts in contact with liquid are made in plastic material and aluminium items are plastic coated to provide protection from chemical products used in agriculture

The Bertolini Poly 2073 is a low-pressure three-diaphragm spray pump delivering up to 71 L/min at 15 bar / 218 psi. Designed for agricultural spraying applications, it is suited to motorised spray units running 600–800 L tanks, including setups fitted with a gorse gun and/or 10-metre spray boom. The three-diaphragm design provides smoother flow and reduces hammer effect in the delivery circuit.

The Poly 2073 is driven via a 1″ keyed shaft at up to 550 RPM, requiring 3 HP. It features an oil-immersed mechanism with a clear plastic sight glass for easy oil level monitoring. Parts in contact with liquid are made in plastic material and aluminium items are plastic coated to provide protection from chemical products used in agriculture.

Specifications

Related Pumps

The Bertolini POLY 2073 is also available with a 1″ 3/8 6 spline input shaft.

• Bertolini POLY 2073 Spray Pump

Related Parts

Genuine parts for the Bertolini POLY2073 Spray Pump are available separately:

• Service Kit
• Valve Assembly
• Diaphragm

Accessories

Check out our full range of spray pump accessories to complete your setup and get the most out of your Bertolini Spray Pump.
