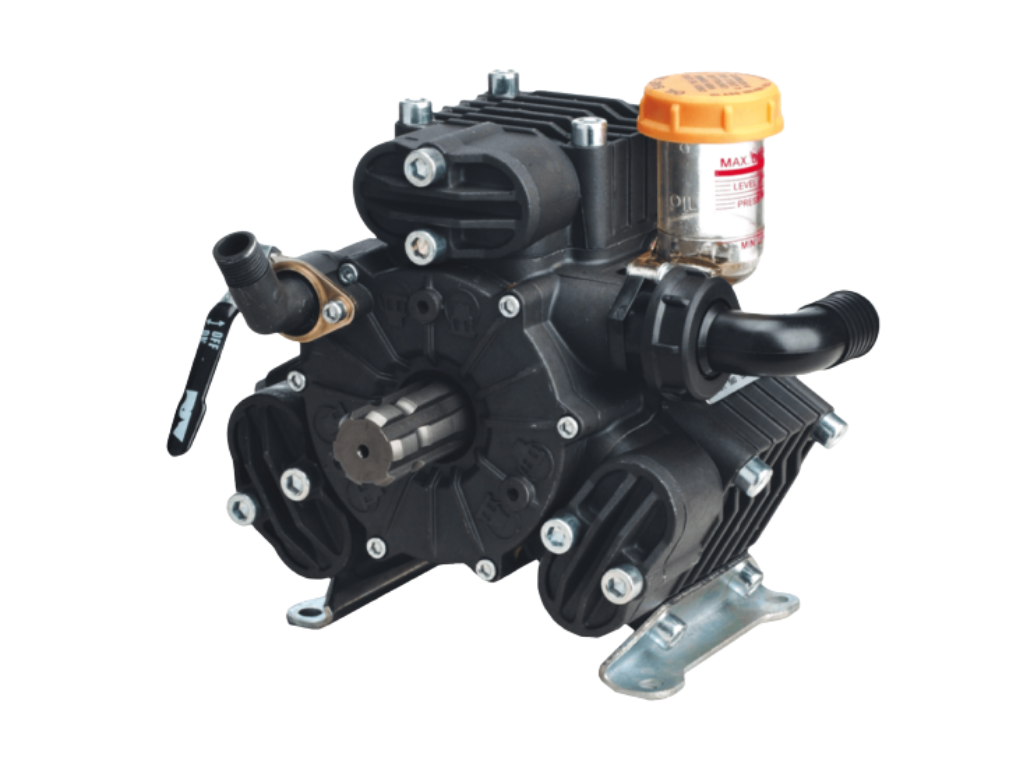

Bertolini PA530 Spray Pump – VC Flange
PA530
$1,512.00 + GST
Save $378 – 20% off (RRP $1,890)
- Medium-pressure three-diaphragm spray pump for 3-point linkage sprayers
- Suited to 3-point linkage spray units with 600–800 L tanks, gorse guns, and/or 8-metre spray booms
- Ideal for paddock spraying, weed control, and farm chemical application
- Max flow 54 L/min, max pressure 40 bar / 580 psi
- VC flange configuration: 1″ 3/8 male 6-spline front shaft with 6-hole rear flange and 25.4mm keyed shaft option, making it straightforward to fit to most standard tractor PTO setups
- Parts in contact with spray liquid made of plastic-coated aluminium
The Bertolini PA530 is a medium-pressure three-diaphragm spray pump delivering up to 54 L/min at 40 bar / 580 psi. Designed for agricultural spraying applications, it is suited to 3-point linkage spray units running 600–800 L tanks, including setups fitted with a gorse gun and/or 8-metre spray boom.
The PA530 VC Flange version runs via a 1″ 3/8 male 6-spline front shaft with a 6-hole rear flange, and also accepts a 25.4mm keyed shaft, at up to 550 RPM requiring 5.5 HP. Parts in contact with spray liquid made of plastic-coated aluminium.
Suited for 3pt linkage 600 – 800 litre spray units. with gorse gun and/or 8 metre spray booms
Specifications
| Pump type | Medium-pressure three-diaphragm |
|---|---|
| Max flow | 54 L/min |
| Max pressure | 40 bar / 580 psi |
| Max RPM | 550 RPM |
| Required HP | 5.5 HP |
| Shaft type | 1″ 3/8 male 6-spline (front) / 6-hole rear flange / 25.4mm keyed shaft |
| Suction inlet diameter | Ø30 mm |
| Delivery outlet diameter | Ø13 mm |
| Number of diaphragms | 3 |
| Diaphragm/seal material | NBR |
| Pump body material | Parts in contact with spray liquid made of plastic-coated aluminium |
| Oil capacity | 0.5 L |
| Dimensions (L × H × W) | 275 × 256 × 230 mm |
| Weight | 14 kg |
Accessories
Check out our full range of spray pump accessories to complete your setup and get the most out of your Bertolini Spray Pump.
Related Parts
Genuine parts for the Bertolini PA530 Spray Pump are available separately:
