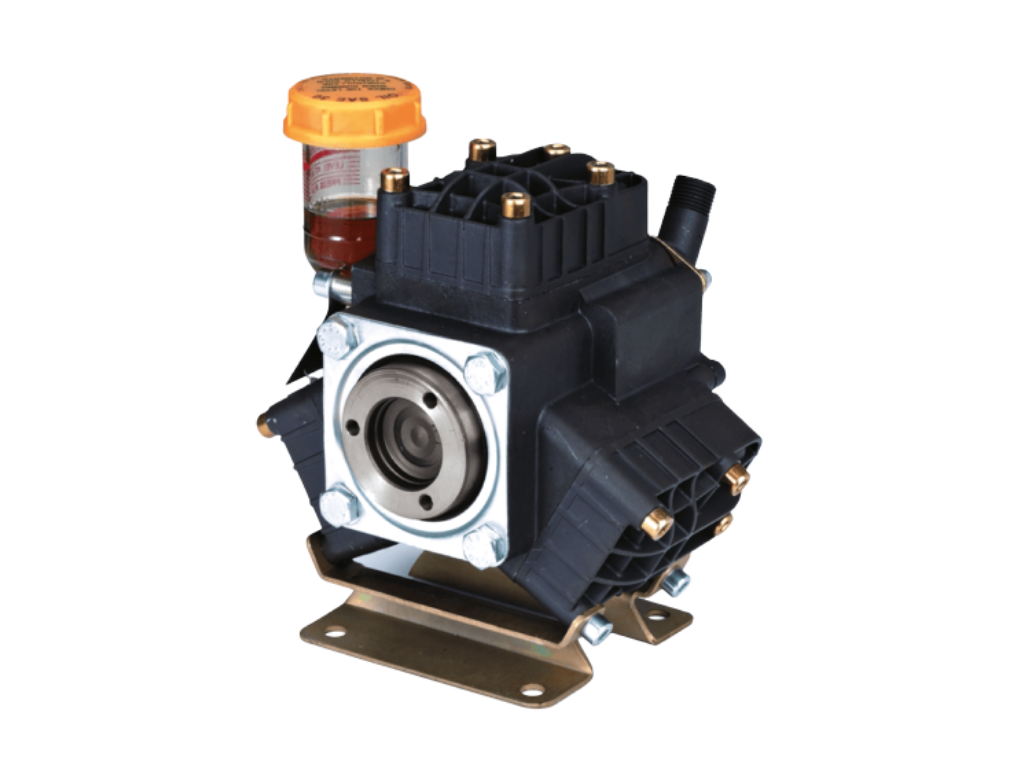

Bertolini PA430 Spray Pump
PA430
$1,099.00 + GST
Save $366 — 25% Off (RRP $1,465.00)
- Medium pressure three-diaphragm spray pump
- Max flow 40 L/min, max pressure 40 bar / 580 psi
- Three-diaphragm configuration with oil-immersed mechanism
- Suitable for orchard and vineyard sprayers, atomisers, and disinfestation applications
- Max 550 RPM, requires 4.0 HP
- Parts in contact with spray liquid made of plastic-coated aluminium
The Bertolini PA 430 is a medium-pressure three-diaphragm spray pump delivering up to 40 L/min at 40 bar / 580 psi. Designed for agricultural spraying applications, it is suited to orchard and vineyard sprayers, atomisers, and disinfestation equipment requiring higher operating pressures.
The PA 430 is available in multiple shaft configurations including a 1″ 3/8 male shaft, female PTO coupling, and 25.4mm keyed shaft, running at up to 550 RPM and requiring 4.0 HP. The oil-immersed mechanism features a clear plastic sight glass for easy level monitoring. Parts in contact with spray liquid are made of plastic-coated aluminium to provide protection from chemical products used in agriculture.
Specifications
| Pump type | Medium-pressure three-diaphragm |
|---|---|
| Max flow | 40 L/min |
| Max pressure | 40 bar / 580 psi |
| Max RPM | 550 RPM |
| Required HP | 4.0 HP |
| Shaft type | 1″ 3/8 male / female PTO coupling / 25.4mm keyed shaft |
| Suction inlet diameter | Ø25 mm |
| Delivery outlet diameter | Ø13 mm |
| Number of diaphragms | 3 |
| Diaphragm/seal material | NBR |
| Pump body material | Parts in contact with spray liquid made of plastic-coated aluminium |
| Oil capacity | 0.6 L |
| Dimensions (L × H × W) | 239 × 241 × 219 mm |
| Weight | 7.8 kg |
Accessories
Check out our full range of spray pump accessories to complete your setup and get the most out of your Bertolini Spray Pump.
Related Parts
Genuine parts for the Bertolini PA430 Spray Pump are available separately:
