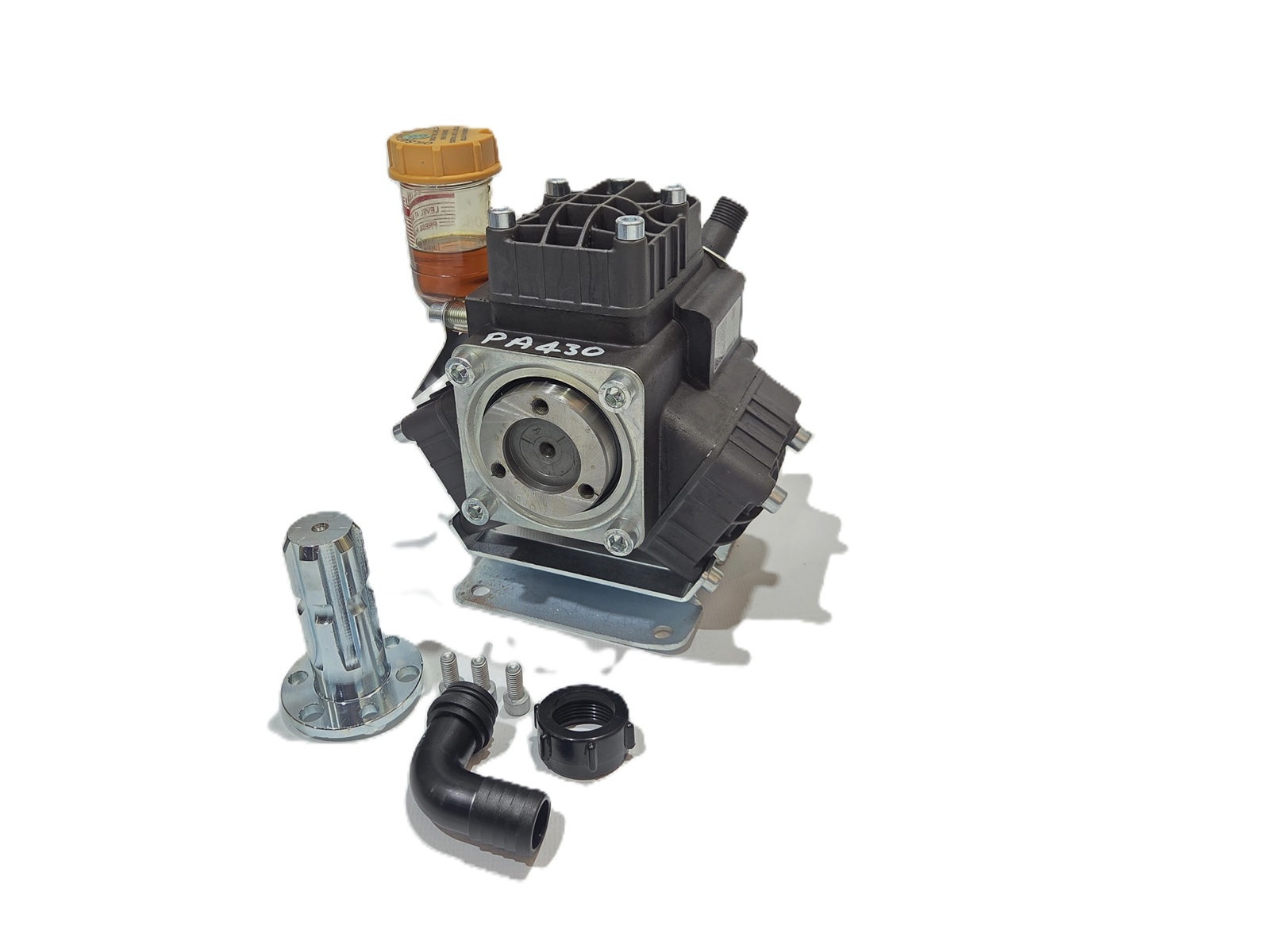

Bertolini PA430 Spray Pump c/w 1″ 3/8 6 Spline Stub Shaft
PA430
$1,224.00 + GST
Save $306 — 20% Off (RRP $1,530)
- Medium pressure three-diaphragm spray pump
- Max flow 40 L/min, max pressure 40 bar / 580 psi
- Three-diaphragm configuration with oil-immersed mechanism
- Suitable for orchard and vineyard sprayers, atomisers, and disinfestation applications
- Max 550 RPM, requires 4.0 HP
- Parts in contact with spray liquid made of plastic-coated aluminium
The Bertolini PA 430 is a medium-pressure three-diaphragm spray pump delivering up to 40 L/min at 40 bar / 580 psi. Designed for agricultural spraying applications, it is suited to orchard and vineyard sprayers, atomisers, and disinfestation equipment requiring higher operating pressures.
The PA 430 comes complete with a 1″ 3/8 male shaft, running at up to 550 RPM and requiring 4.0 HP. The oil-immersed mechanism features a clear plastic sight glass for easy level monitoring. Parts in contact with spray liquid are made of plastic-coated aluminium to provide protection from chemical products used in agriculture.
Specifications
| Pump type | Medium-pressure three-diaphragm |
|---|---|
| Max flow | 40 L/min |
| Max pressure | 40 bar / 580 psi |
| Max RPM | 550 RPM |
| Required HP | 4.0 HP |
| Shaft type | 1″ 3/8 male |
| Suction inlet diameter | Ø25 mm |
| Delivery outlet diameter | Ø13 mm |
| Number of diaphragms | 3 |
| Diaphragm/seal material | NBR |
| Pump body material | Parts in contact with spray liquid made of plastic-coated aluminium |
| Oil capacity | 0.6 L |
| Dimensions (L × H × W) | 239 × 241 × 219 mm |
| Weight | 7.8 kg |
Related Pumps
This pump is also available with a 3 Bolt Flange input drive
Related Parts
Genuine parts for the Bertolini PA 430 Spray Pump are available separately:
Accessories
Check out our full range of spray pump accessories to complete your setup and get the most out of your Bertolini Spray Pump.
