Annovi Reverberi AR80BP Spray Pump
AR80BP
$1,345.00 + GST
Save $336 -20% off (RRP $1,681.00)
- Genuine Italian-made diaphragm pump, suitable for 3-point linkage sprayers
- Max flow 76 L/min, max pressure 20 bar / 290 psi
- Three-diaphragm configuration for smoother flow and reduced hammer effect
- Pressure accumulator included
- Parts in contact with liquid are made in plastic material and aluminium items are plastic coated to provide protection from chemical products used in agriculture
- Suitable for 3-point linkage sprayers with up to 1,000 L tanks, gorse guns, and 12-metre boom sprayers

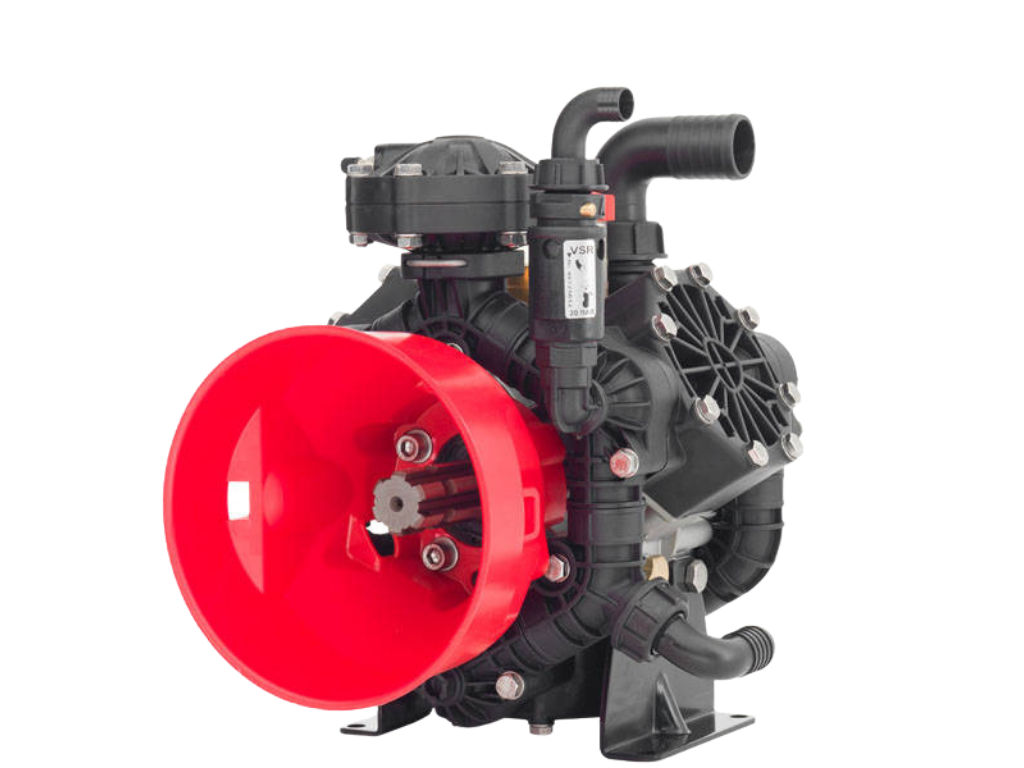

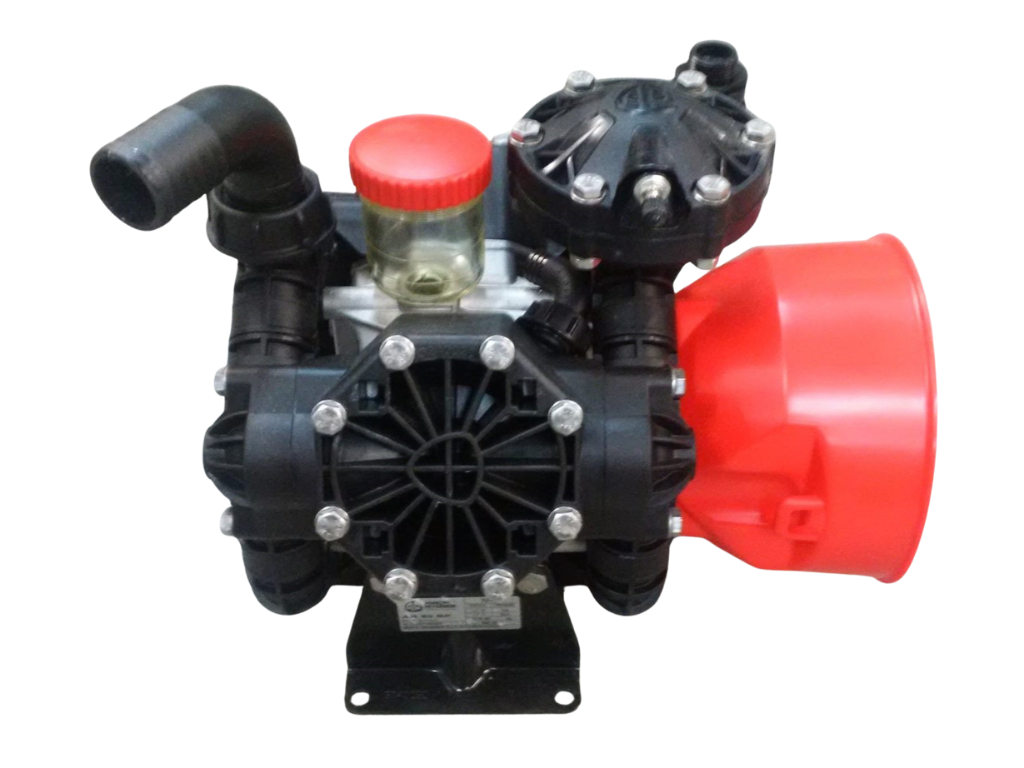

The Annovi Reverberi AR80BP is a low-pressure three-diaphragm spray pump delivering up to 76 L/min at 20 bar / 290 psi. Designed for agricultural spraying applications, it is suited to 3-point linkage sprayers running up to 1,000 L tanks, including setups fitted with a gorse gun and/or 12-metre spray boom. The three-diaphragm design provides smoother flow and reduces hammer effect in the delivery circuit compared to two-diaphragm pumps.
The AR80BP is driven via a 1″ 3/8 male PTO shaft at up to 550 RPM, requiring 3.5 HP. It includes a pressure accumulator and features a die-cast aluminium body with an oil-immersed mechanism. Parts in contact with liquid are made in plastic material and aluminium items are plastic coated to provide protection from chemical products used in agriculture.
Genuine Italian Pump, suitable for 3pt linkage sprayers with a 1000 litre spray tank, fitted with a gorse gun and/or 12 metre spray boom.
Specifications
| Pump type | Low-pressure, semi-hydraulic, three-diaphragm |
|---|---|
| Max flow | 76 L/min |
| Max pressure | 20 bar / 290 psi |
| Max RPM | 550 RPM |
| Required HP | 3.4 HP |
| Shaft type | 1″ 3/8 male |
| Suction inlet diameter | Ø40 mm |
| Delivery outlet diameter | Ø25 mm |
| Number of diaphragms | 3 |
| Diaphragm/seal material | NBR |
| Pump body material | Parts in contact with liquid are made in plastic material and aluminium items are plastic coated to provide protection from chemical products used in agriculture |
| Dimensions (L × H × W) | 474 × 369 × 341 mm |
| Weight | 14 kg |
Accessories
Check out our full range of spray pump accessories to complete your setup and get the most out of your Annovi Reverberi Spray Pump.
Related Parts
Genuine parts for the Annovi Reverberi AR80BP Spray Pump are available separately:
