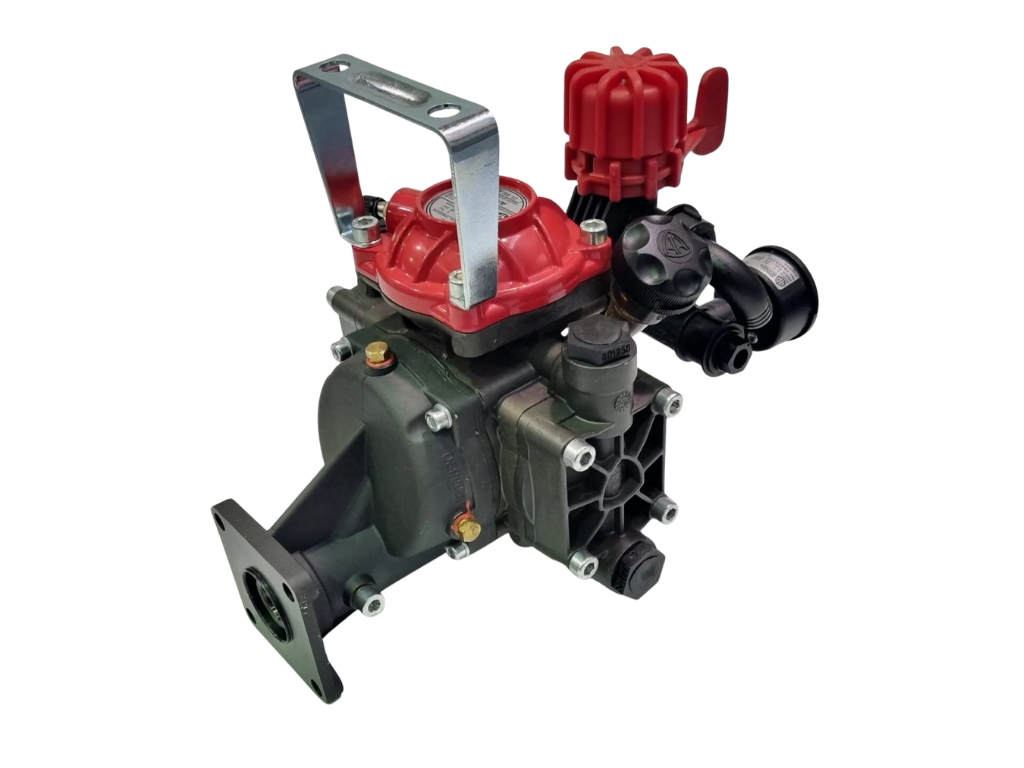

Annovi Reverberi AR252 Spray Pump Gearbox Mount
$1,496.00 + GST
Save $374 — 20% off (RRP $1,870.00)
- Max Flow: 25 litres per minute
- Max Pressure: 25 bar/362 psi
- Comes as a modular unit complete with gearbox and control valve
- Gearbox mounts directly to Honda GX120 or GX160 with a 3/4″ keyed shaft
- Control valve included: one tap and pressure gauge
- Suitable for medium-pressure agricultural spraying, orchards, vineyards, and small sprayers
- Practical option for smaller hand-gun and boom spraying setups
The Annovi Reverberi AR252 is a compact semi-hydraulic two-diaphragm pump delivering up to 25 L/min at pressures up to 25 bar / 362 psi. It comes as a modular unit complete with gearbox and control valve, ready to bolt directly onto a Honda GX120 or GX160 motor via a 3/4″ keyed shaft.
Suited to general agricultural spraying applications including hand-gun and orchard work, the AR252 is a practical choice for building or replacing a standalone engine-driven spray pump setup. The included control valve with one tap and pressure gauge allows straightforward pressure adjustment.
Specifications
| Pump type | Semi-hydraulic two-diaphragm |
|---|---|
| Max flow | 25 L/min |
| Max pressure | 25 bar / 362 psi |
| Max RPM | 650 RPM |
| Shaft type | 3/4″ keyed shaft |
| Suction inlet diameter | Ø19 mm tail |
| Delivery outlet diameter | Ø10 mm tail |
| Number of diaphragms | 2 |
| Diaphragm material | BlueFlex (NBR) |
| Pump body material | Aluminium |
| Oil capacity | 0.38 L (13 oz) |
| Dimensions (L × H × W) | 248 × 237 × 222 mm |
| Weight | 6.4 kg |
| Engine compatibility | Honda GX120 / GX160 |
| Control valve | One tap and pressure gauge |
Accessories
Check out our full range of spray pump accessories to complete your setup and get the most out of your Comet Spray Pump.
Related Parts
Parts for the Annovi Reverberi AR252 Pump are available separately:
