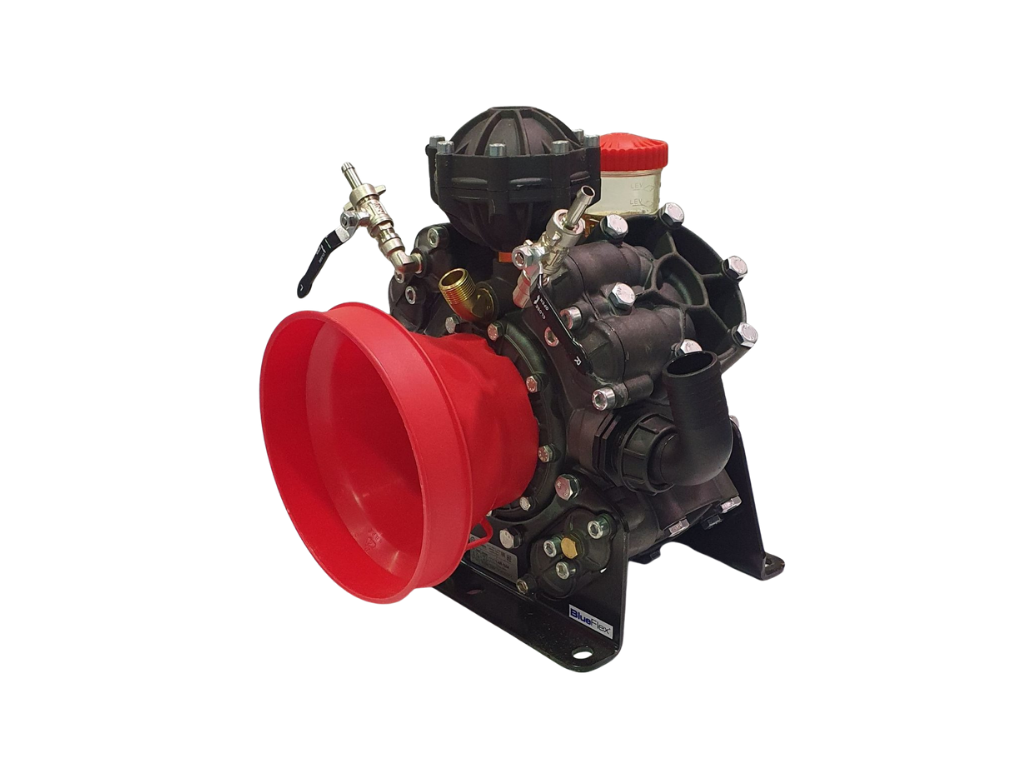

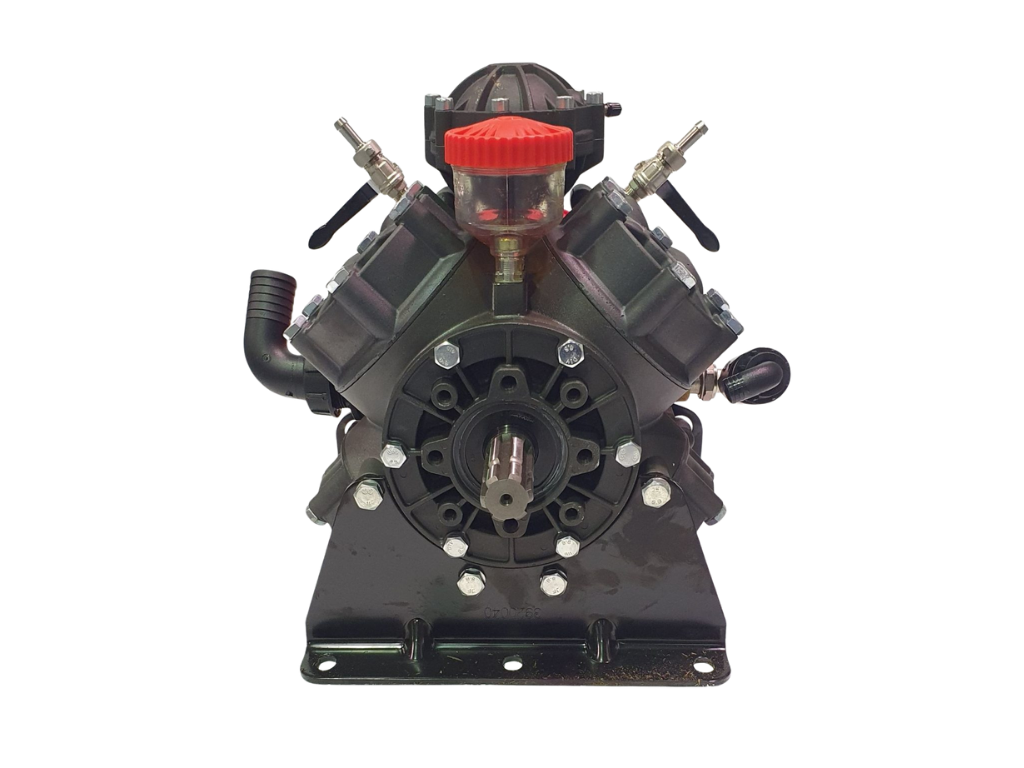

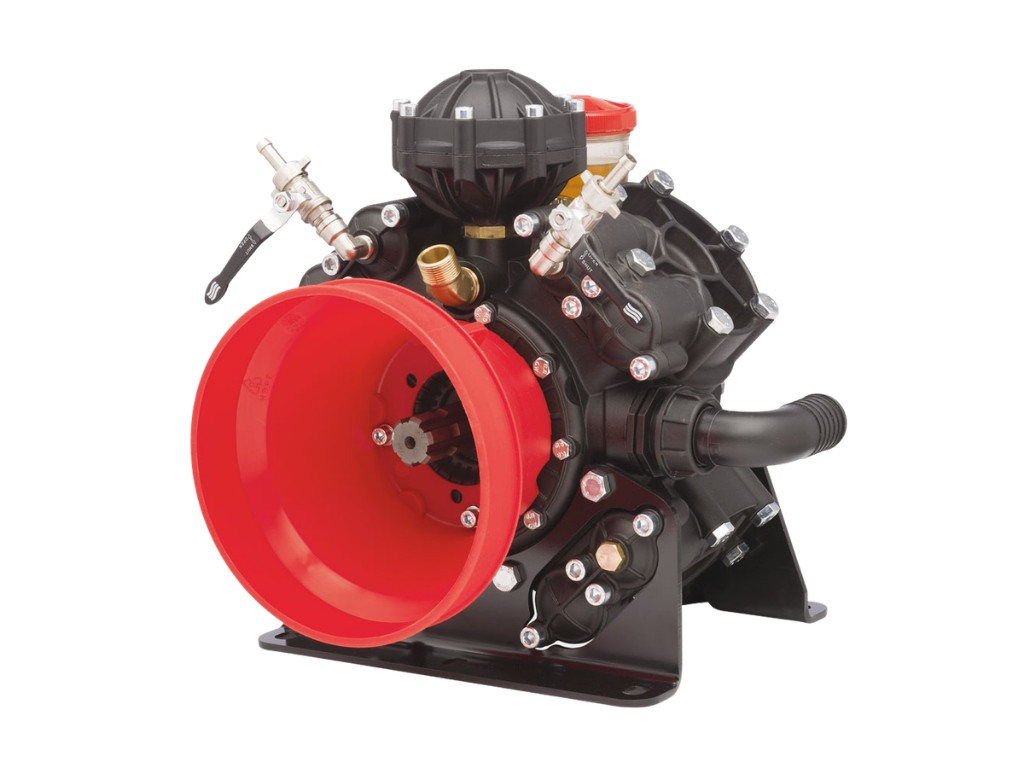

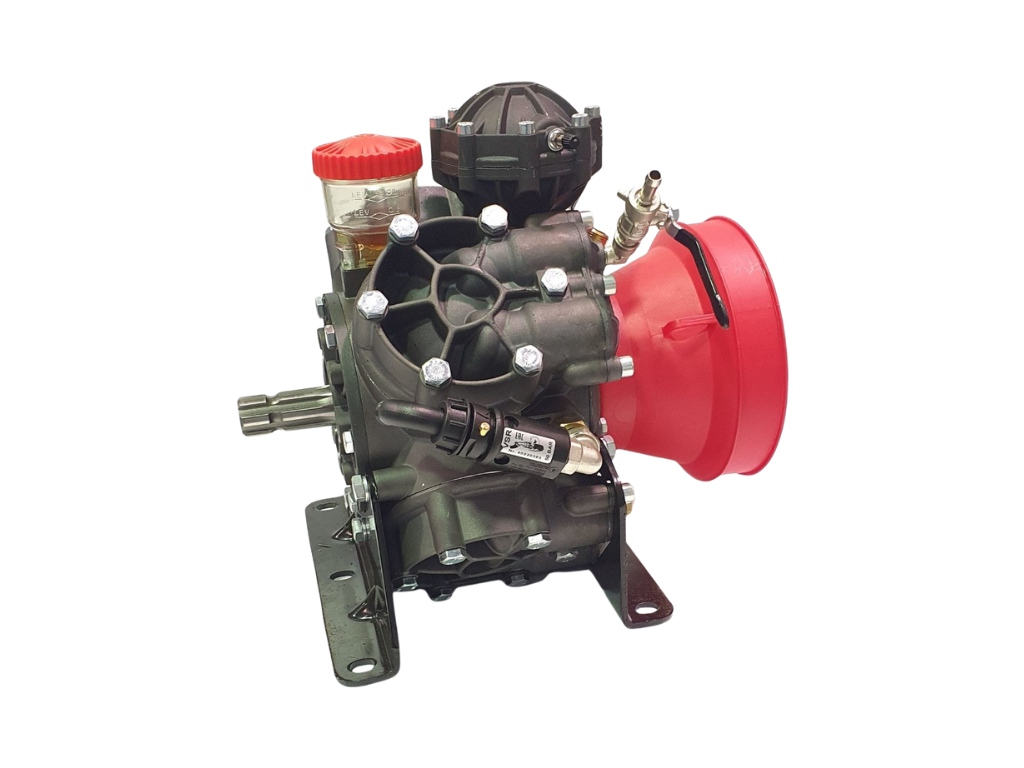

Annovi Reverberi AR1604 Spray Pump
AR1604
$3,750.00 + GST
Save $947 — 20% Off (RRP $4,697.00)
- High-pressure semi-hydraulic four-diaphragm spray pump
- Suited to 1,500–2,000 L orchard and kiwifruit sprayer tanks
- 50 bar safety valve included
- Air-hydraulic damper for smoother operation
- Self-priming
- Parts in contact with liquids made of anodized aluminium for maximum resistance to corrosion
The Annovi Reverberi AR1604 is a high-pressure semi-hydraulic four-diaphragm spray pump delivering up to 153 L/min at 50 bar / 725 psi. Designed for large-scale agricultural spraying applications, it is suited to 1,500–2,000 L orchard and kiwifruit sprayer tanks requiring high flow and high pressure output. The four-diaphragm configuration provides smooth, consistent flow, and the air-hydraulic damper further reduces pressure fluctuation during operation.
The AR1604 is driven via a 1″ 3/8 6-spline PTO shaft at up to 550 RPM, requiring 19 HP, and includes a 50 bar safety valve as standard. Parts in contact with liquids made of anodized aluminium for maximum resistance to corrosion.
Specifications
| Pump type | High-pressure semi-hydraulic four-diaphragm |
|---|---|
| Max flow | 153 L/min |
| Max pressure | 50 bar / 725 psi |
| Max RPM | 550 RPM |
| Required HP | 19 HP |
| Shaft type | 1″ 3/8 6-spline PTO shaft |
| Suction inlet diameter | Ø40 mm |
| Delivery outlet | 3/4″ BSP male thread |
| Number of diaphragms | 4 |
| Diaphragm material | BlueFlex |
| Pump body material | Parts in contact with liquids made of anodized aluminium for maximum resistance to corrosion |
| Dimensions (L × H × W) | 432 × 413 × 513 mm |
| Weight | 38 kg |
| Self-priming capability | Yes |
Accessories
Check out our full range of spray pump accessories to complete your setup and get the most out of your Annovi Reverberi Spray Pump.
Related Parts
Genuine parts for the Annovi Reverberi AR1604 Spray Pump are available separately:
- AR1604 Service Kit
- AR1604 Valves
- Inlet Suction Elbow 40mm
- Capnut
- Outlet Tail 13mm
- Sight Glass
- Piston Diaphragm
- Air Diaphragm
